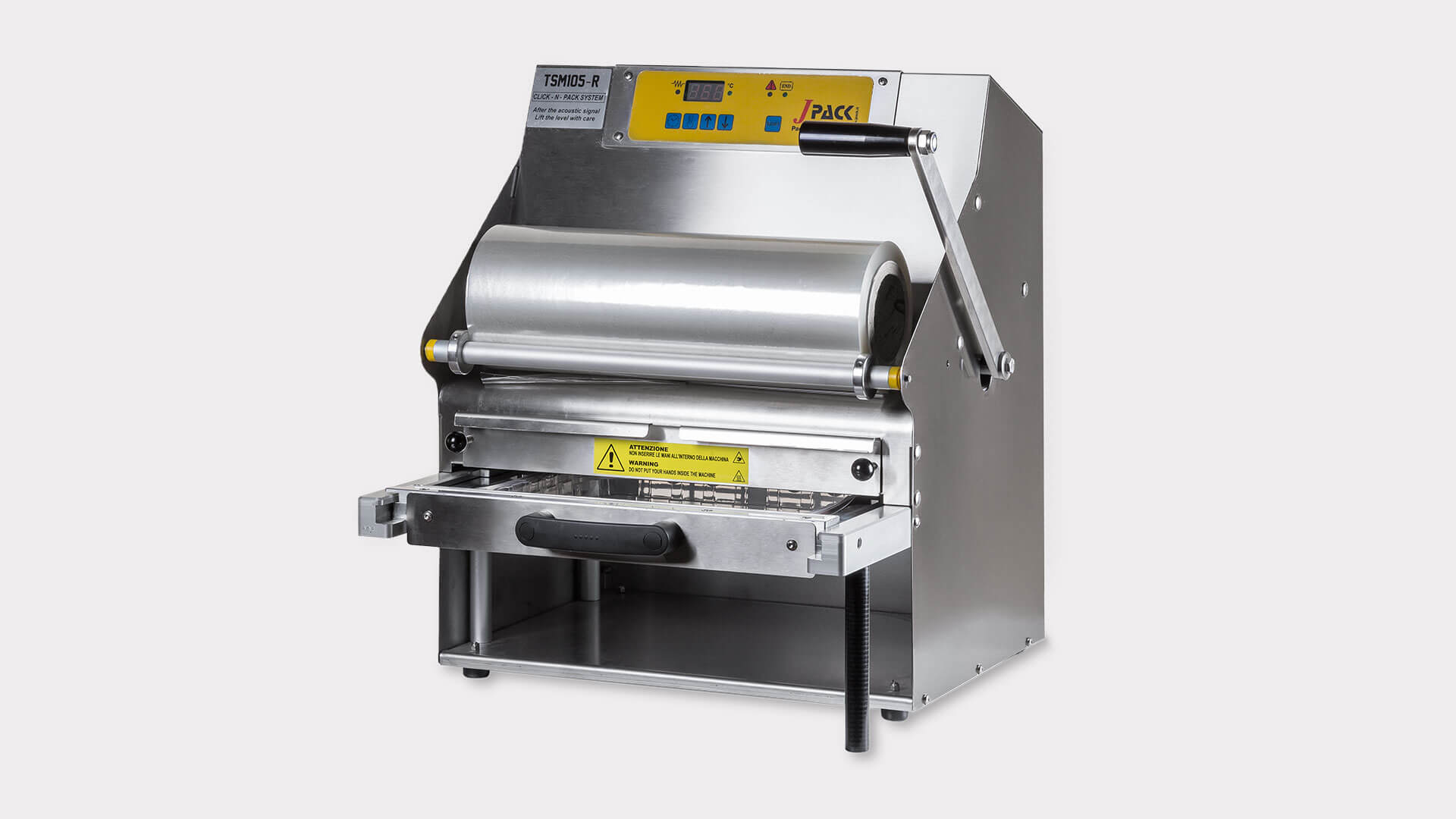

Tray Sealer TSM 101 – R

Manual tray sealing machine

The TSM 101 – R is a robust and reliable manual tray sealer, designed for efficient thermosealing applications in professional environments. Crafted from high-quality stainless steel and anodized aluminum, it offers durability and resistance against corrosion, ensuring a long service life even in demanding conditions.

This compact machine is equipped with five programmable sealing options, allowing flexible operation tailored to various packaging needs. The integrated electronic temperature control guarantees precise and consistent sealing results, while visual and acoustic end-of-cycle signals provide clear feedback for the operator.

For enhanced usability, the TSM 101 – R features automatic film unwinding and enables quick and hassle-free mould changes, significantly reducing downtime and boosting productivity.

Ideal for small to medium-scale production settings, the TSM 101 – R combines reliability, ease of use, and performance in one versatile unit.

At a glace
  • Realized in stainless steel and anodized aluminum
  • 5 Sealing programs
  • Electronic temperature control
  • End of cycle visual and acustic signal
  • Automatic film unwinding
  • Fast and easy mould change

Details & Options

  • Machine dimensions (Width x Depth x Height)
    • 260 x 390 x 500 mm
  • Weight
    • ~ 20 kg
  • Absorption
    • ~ 0,5 kW
  • Electrical feeding
    • 230 Volt / 50-60 Hz
  • Sealing plate dimensions
    • 150 x 205 mm
  • Maximum tray height
    • 100 mm
  • Maximum film dimensions
    • ⌀ 160 x 150 mm
  • Productivity
    • 6-8 cycles/minute
