Checkout System

Checkout scale CS 300 MP 70

The CS 300 reliably integrates in existing scanner solutions in the checkout area
Contact a Consultant

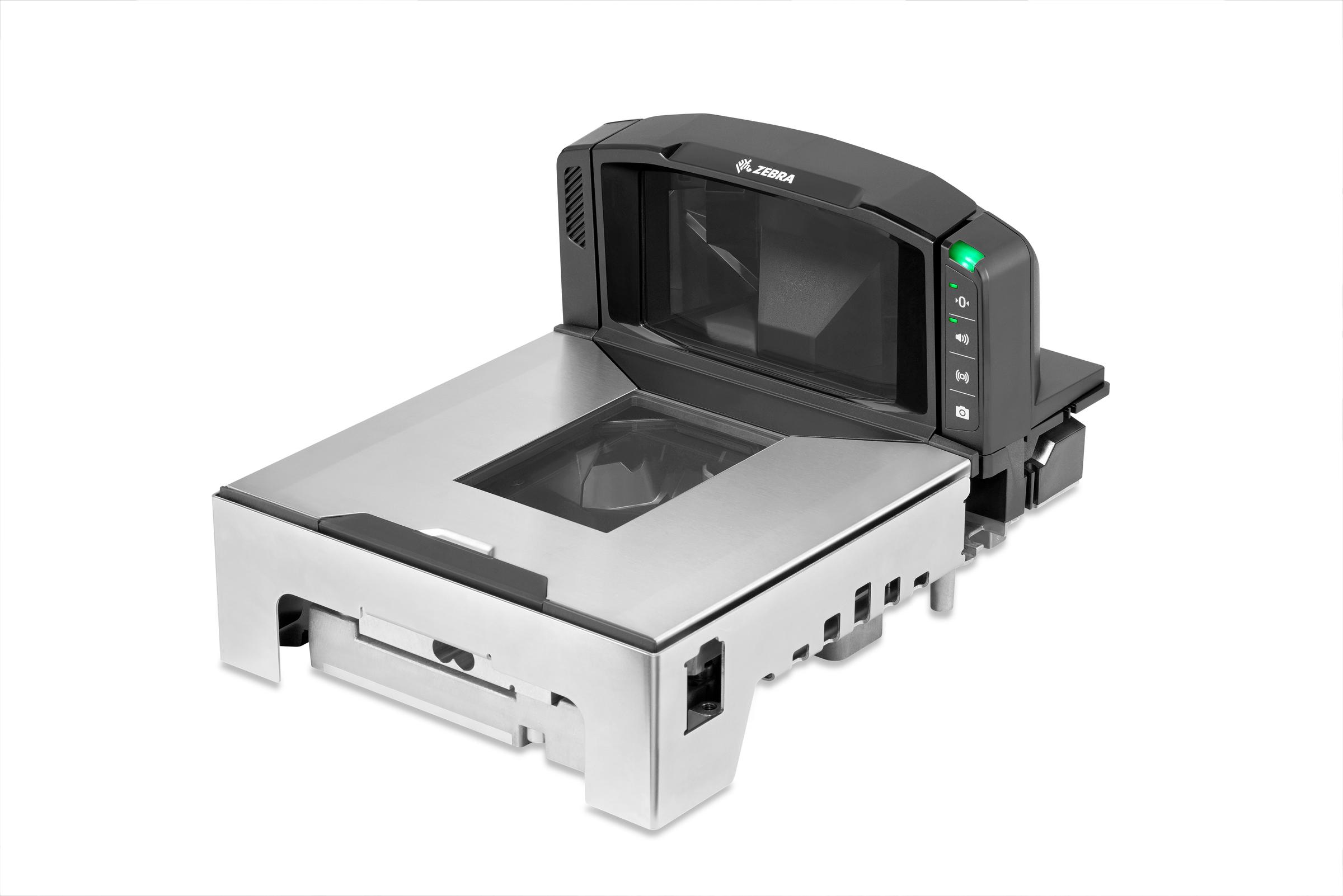

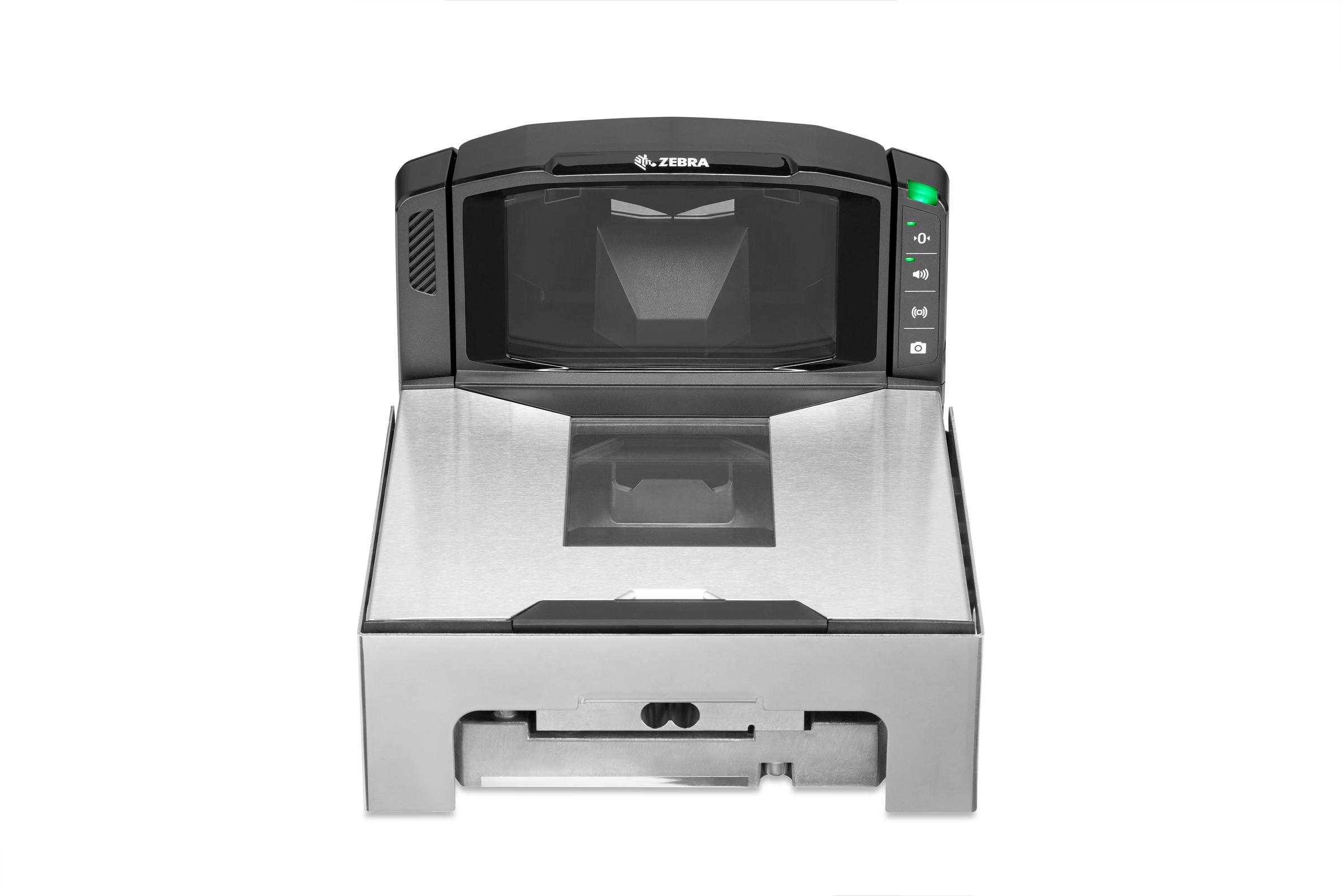

The Bizerba CS 300 family is impressive in terms of its smooth integration capacity in cash register and scanner solutions. Due to the combination of a Bizerba checkout scale with the Zebra MP7000 scanner, weighing with exact pricing in a compact device can be ensured even when space is at a premium. In just a few simple steps the CS 300 MP 70 can be integrated in the MP7000. Scanning and weighing are combined and the cashing process optimized.
Products That May Also Interest You:

Highlights

  • Zero setting and access to the scale menu using the scanner for ergonomic operation
  • Data dialogs for common cash register systems included in the standard
  • Hardware and software display to show weight and price

Product images and technical information may differ and may not be available in your country.

Areas of Use

  • Integration in your existing cash register system

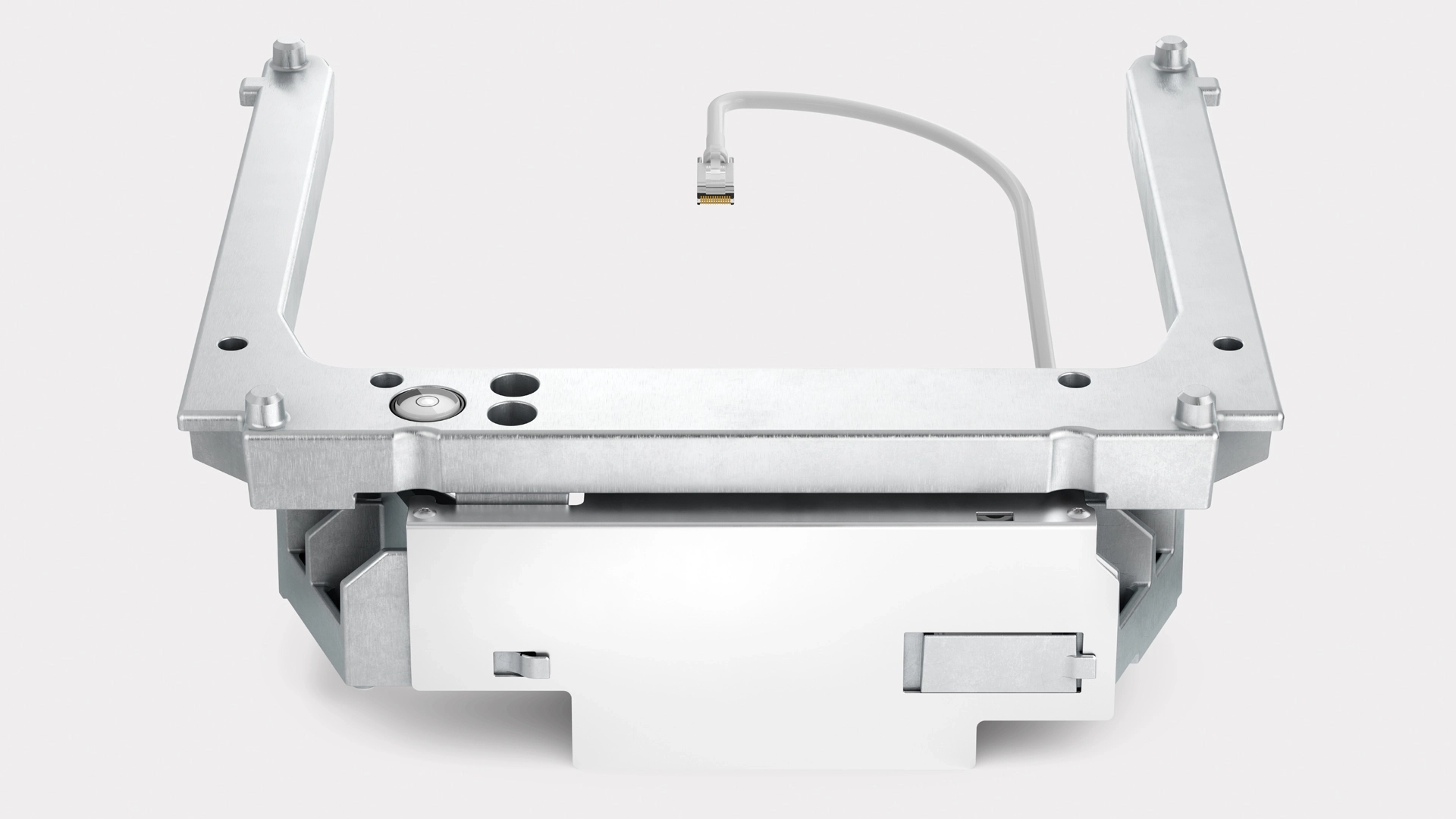

  • Weighing systems for integration in the Zebra MP7000 scanner

More Information, Please

How Can We Help?

We will be happy to inform & advise you on your options with this solution or service. Please give us some information so that we can support you in the best possible way. We will get back to you as soon as possible.
Contact a Consultant

Details & Options

  • USB and RS232 interface for connection to current and future POS systems included in the standard
  • Development support - whether for drivers or declaration of conformity - everything from a single source
  • Long-term stability of the weighing system due to high quality materials and a robust design
  • No periodic re-calibration during useful life necessary
  • Displays
    • P display - one-sided display (weight, tare, unit price, selling price)
    • WS display - one-sided display (weight only)
    • SW display - software display license
  • Display holders
    • Stand
    • Alternative for stand: angle bracket/short stand
  • External operating element
    • Zerosetting key and function key to open the scale menu
Specification Facts Details
Selling price digits Selling price digits max.
Selling price digits max. 		6
6
Interfaces USB
RS232
USB
RS232
Unit price increments Unit price increments, smallest unit
Selling price increments, smallest unit 		0,01
0,01
Temperature range 14 °F to 104 °F
-10 °C to +40 °C 		Operation

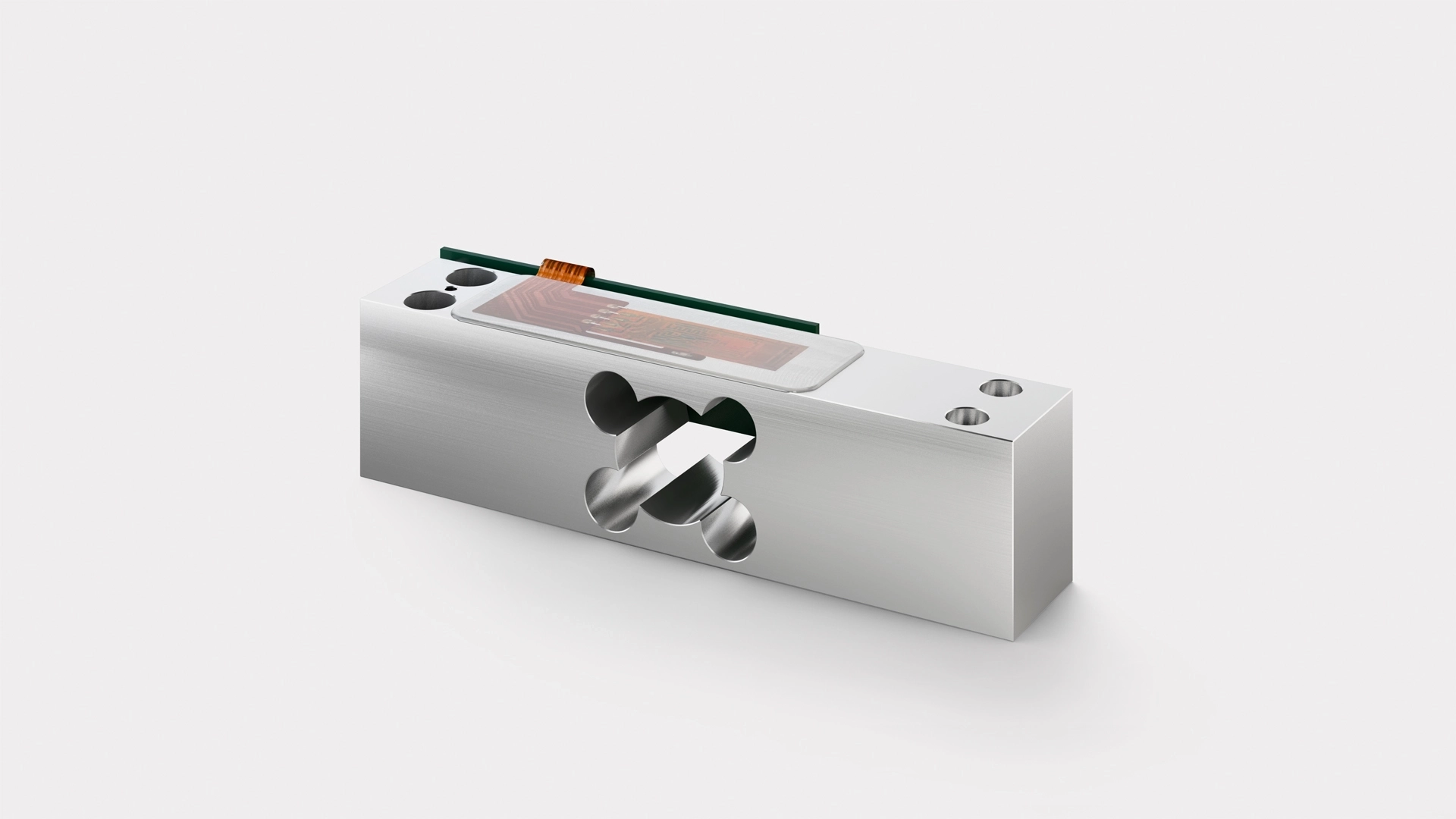

Weighing system Multi-interval strain gauge weighing system
Multi-interval strain gauge weighing system 		2x 3000d
2x 3000d
Dimensions (L x W x H)/(D x W x H) 292 x 397 x 229 mm
292 x 397 x 229 mm
Compatible devices Zebra MP7000
Zebra MP7000
Weight ca. 3 kg
ca. 3 kg
Unit price digits Unit price digits max.
Selling price digits max. 		6
6
Supply medium Power supply via scanner
Power supply via scanner
Accuracy class III
I
III
I
Weighing range 6/15 kg
6/15 kg 		e=2/5 g, min weight 40 g / verification values 2 x 3.000
e=2/5 g, min weight 40 g / verification values 2 x 3.000
Selling price increments Selling price increments, smallest unit
Selling price incre?ments, smallest unit 		0,01
0,01
For Take Away

Downloads

You can find operating instructions, software updates, licenses, service requests for your personal device in the Bizerba customer portal.
Datasheet CS 300 MP 70 EN (1 MB)
