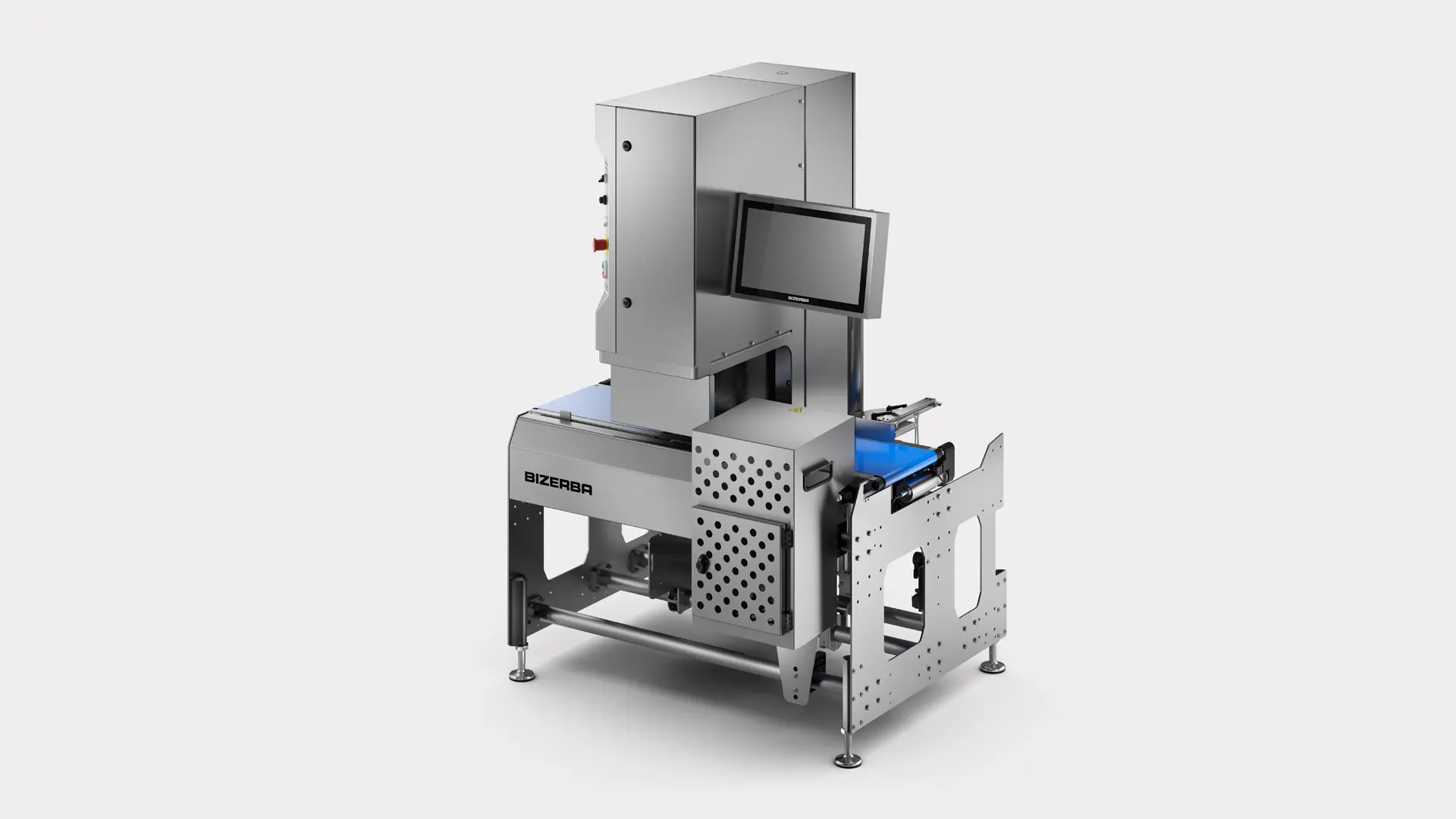

Vision inspection system SealSecure basic

Optical inspection for efficient validation of package seals

SealSecure basic checks seal areas of packages and rejects packages with contaminated seals and warns users in the event of repeated failures by means of an alarm allowing them to solve the problem immediately. SealSecure basic thus prevents extensive rework on untight packages as well as claims and product recall due to leaky or spoiled packages. This ensures that only flawless products reach the market. Furthermore, products can be fully tracked since all images recorded during production can be archived. The monitoring of the packaging process is ensured by quality reports which are prepared on a regular basis.

SealSecure basic is compatible with numerous packaging types.

Highlights

  • Touchless and non-destructive seal inspection
  • Prevents leaking packages
  • Well suited for multi-format lines with automatic changes
  • Automatic sorting of products which do not correspond to reference criteria
  • Integrated, fully automated system for a packaging line
  • Robust optical and vision systems resulting from 40 years of Luceo expertise
  • Compatible with a wide range of packages (thermoformed or top sealed trays, seal area can be fully transparent or partly colored)
  • Software for complete tracking of all products: Saving of images incl. date and time, counter, production and machine log
  • Safe and easy operation
  • Intuitive user interface with color touch screen
  • Offline parameter-setting allows manual adjustment of parameters based on saved images
  • Easy installation on existing lines (max. 1.6 meters including rejection)

Product images and technical information may differ and may not be available in your country.

Areas of use


  • 100% inspection
  • Verification of pack sealing


Details & Options

  • IP66 protection
  • Air conditioning
  • Robot control
  • Further inspection function: Checking of product presence in a package
  • Production control due to passing on of signals
Specification Facts Details
Voltage variants 110 - 230 V 50/60 Hz, AC
Size/type Operator Display 18.5 " touch screen
Protection class IP54
Interfaces LAN (RJ45, GBit LAN)
3x COM (RS 232)
3 x USB 3.0 Typ-A (Highspeed)
Temperature range 33,8 °F to 104 °F
14 °F 		Operation
Storage
Product temperature 14 °F to 104 °F
Installation type Floor
Ambient air humidity 25% to 85% RH (non-condensing)
Dimensions (L x W x H)/(D x W x H) Min. 100 mm (L) x 40 mm (l) x 10 mm (H)
Max. 650 mm (L) x 295 mm (l) x 220 mm (H)*
*with ejection pusher standard max. 300 mm (L) et 105 mm (H)
Product Dimensions Range (L x W x H) Min. 100 mm x 40 mm x 10 mm
Max. 650 mm x 295 mm x 220 mm
Operating system Windows® 11 Ltsc
Reject systems Air-jet nozzle
Material stainless steel
Processor type Intel® Core™ i7
Display resolution 1.920 x 1.080 (Full-HD)
Approval information CE
UL
Dimensions range (L x W x H)/(D x W x H) Min. 1,095 mm x 932 mm x 1,816 mm
Max. 1,497 mm x 932 mm x 1,816 mm
Power consumption 200 W
For take away

Downloads

You can find operating instructions, software updates, licenses, service requests for your personal device in the Bizerba customer portal.
Datasheet SealSecure (844 KB)
Factsheet SealSecure_basic_L (896 KB)
Factsheet SealSecure_basic_T (849 KB)
