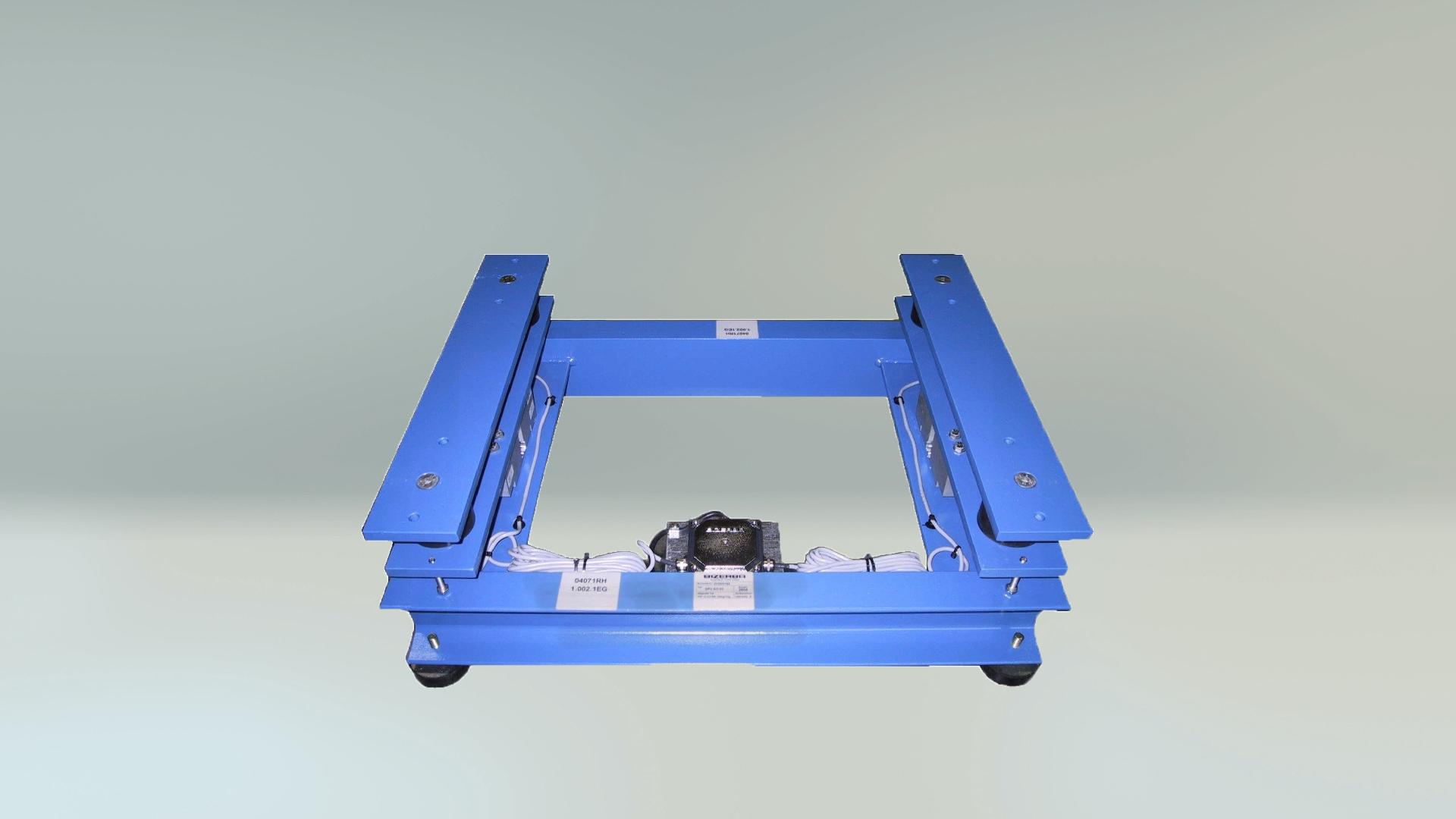

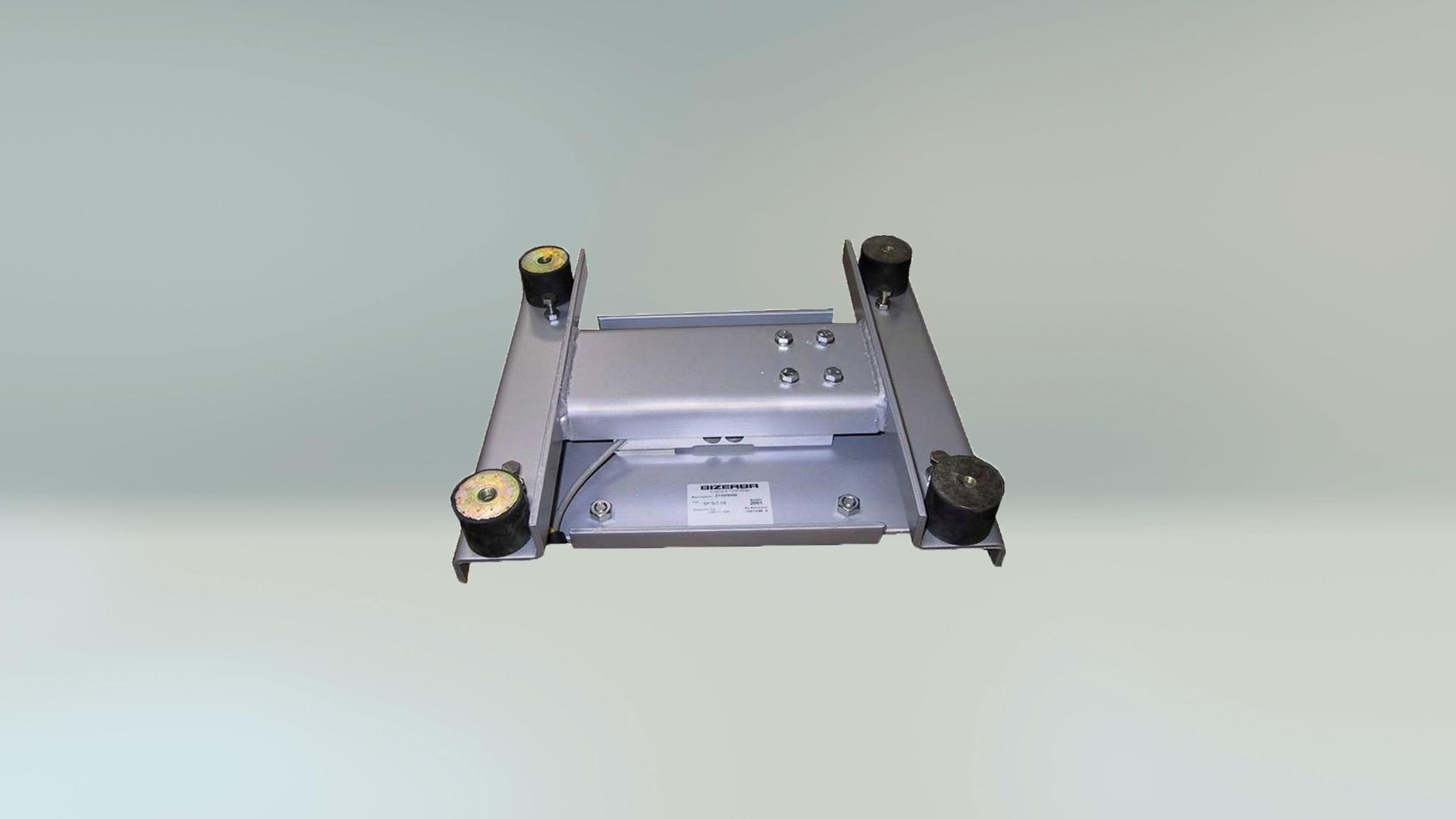

Load Transducer for Logistics TFT

Load receptor for logistics in the sub-area of tray conveyor technology with painted steel in dry room design.

Innovative solution to accommodate customer's self-supporting superstructures such as belt conveyors, roller conveyors, etc. This solution is supplied in powder-coated finish (RAL according to customer's requirements). A flexible frame dimension allows bridge sizes with a max. width of 800 mm: the length of the structure is project-specific.In conjunction with a rechargeable battery, mains-independent operation is also possible.For use in hazardous operating areas, design variants for zones 2/22 and 1/21 are available. The standard version ensures legal for trade (accuracy class III).

Ayrıntılar ve Seçenekler

Weighing range kgPartition value kg
300,01
600,02
1000,05
3000,1
Transducer for connection to Bizerba evaluation unit:2 DMS load cell
Settling time:ca. 2 – 3 s
Ambient temperature:Operation: -10 °C bis +40 °C
Storage: -50 °C bis +85 °C
Temperature change rate:max. 5 °C/h
Protection class according to DIN/VDE 0470:IP 67
Load capacity:max. 500 kg
