Checkout System

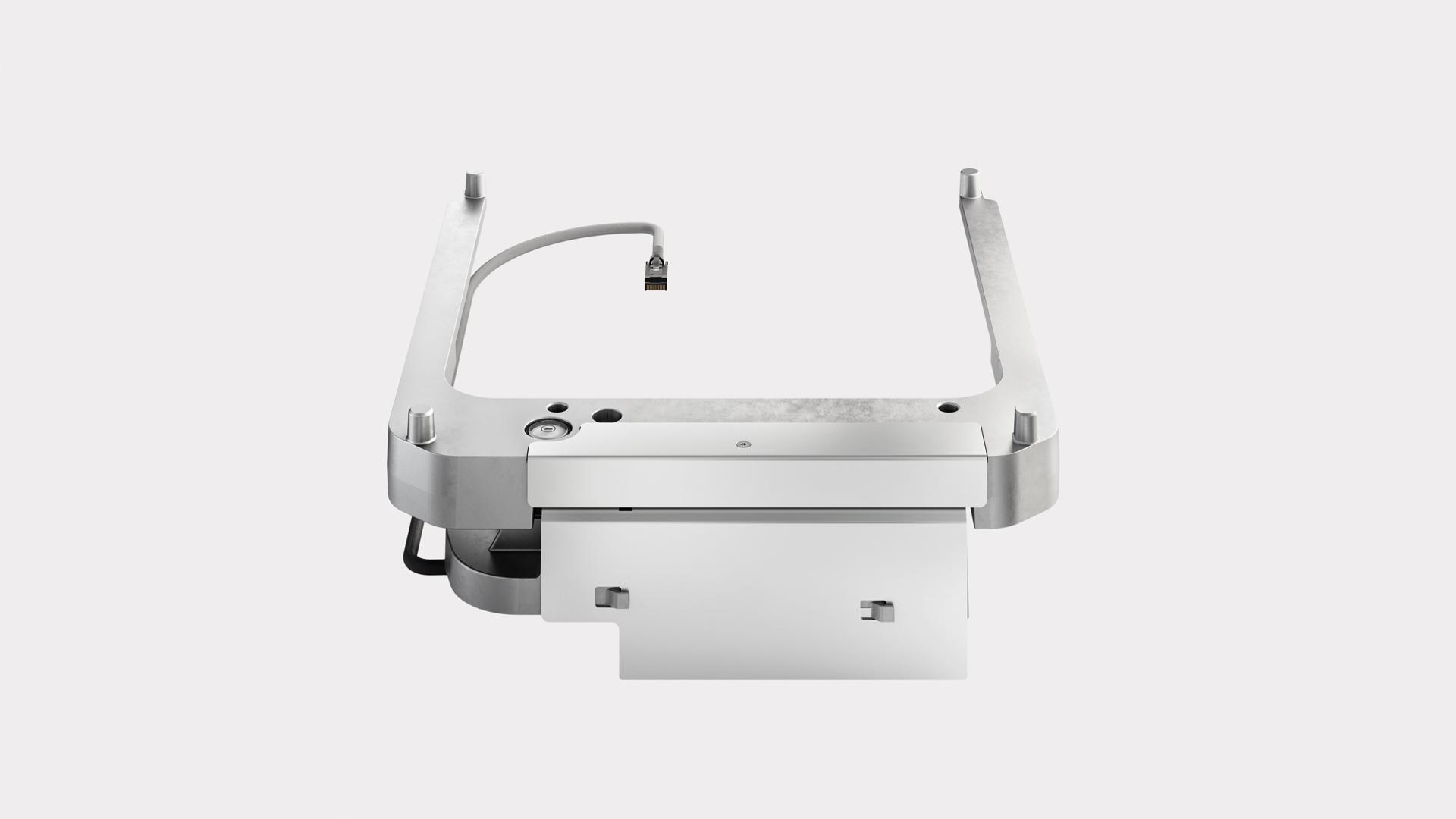

Checkout scale CS 300 MA 9803

The CS 300 reliably integrates in existing scanner solutions in the checkout area
Due to the extremely high availability and its flexible interface protocols this weighing system can be perfectly integrated in your cash register system.

Highlights

  • Reliable, high performance multi-interval weighing system - made in Germany
  • Choice between different hardware and software display solutions to show price and weight
  • Data dialogs for common cash register systems included in the standard
  • Power supply of scale via scanner
  • Integrating Datalogic`s ScaleSentry function, weighing losses are minimized
  • Taring and zero setting at the scanner allows ergonomic operation
  • USB and RS 232 interface for the connection to current and future POS System in standard

Product images and technical information may differ and may not be available in your country.

Areas of Use

  • Integration in your existing cash register system
  • Weighing system for Datalogic imaging scanner MagellanTM 9800i

Details & Options

  • The RS232 interface for POS system connection is included in the standard
  • Development support - whether for drivers or declaration of conformity - everything from a single source
  • Long-term stability of the weighing system due to high quality materials and a robust design
  • No periodic re-calibration during useful life necessary
  • Displays
    • P display - display on one side (weight, tare, unit price, selling price)
    • P display - display on two sides (weight, tare, unit price, selling price)
    • WS display - display on one side (weight only)
    • SD display - software display license
  • Display holders
    • Stand
    • Alternative for stand: angle bracket / short stand
  • External operating element
    • Tare key and zero setting key
Specification Facts Details
Selling price digits Selling price digits max.
Selling price digits max. 		6
6
Weighing range 6/15 kg
6/15 kg
Selling price increments Selling price increments, smallest unit
Selling price incre?ments, smallest unit 		0,01
0,01
Interfaces USB
RS232
USB
RS232
Unit price increments Unit price increments, smallest unit
Selling price increments, smallest unit 		0,01
0,01
Temperature range 14 °F to 104 °F
-10 °C to +40 °C 		Operation

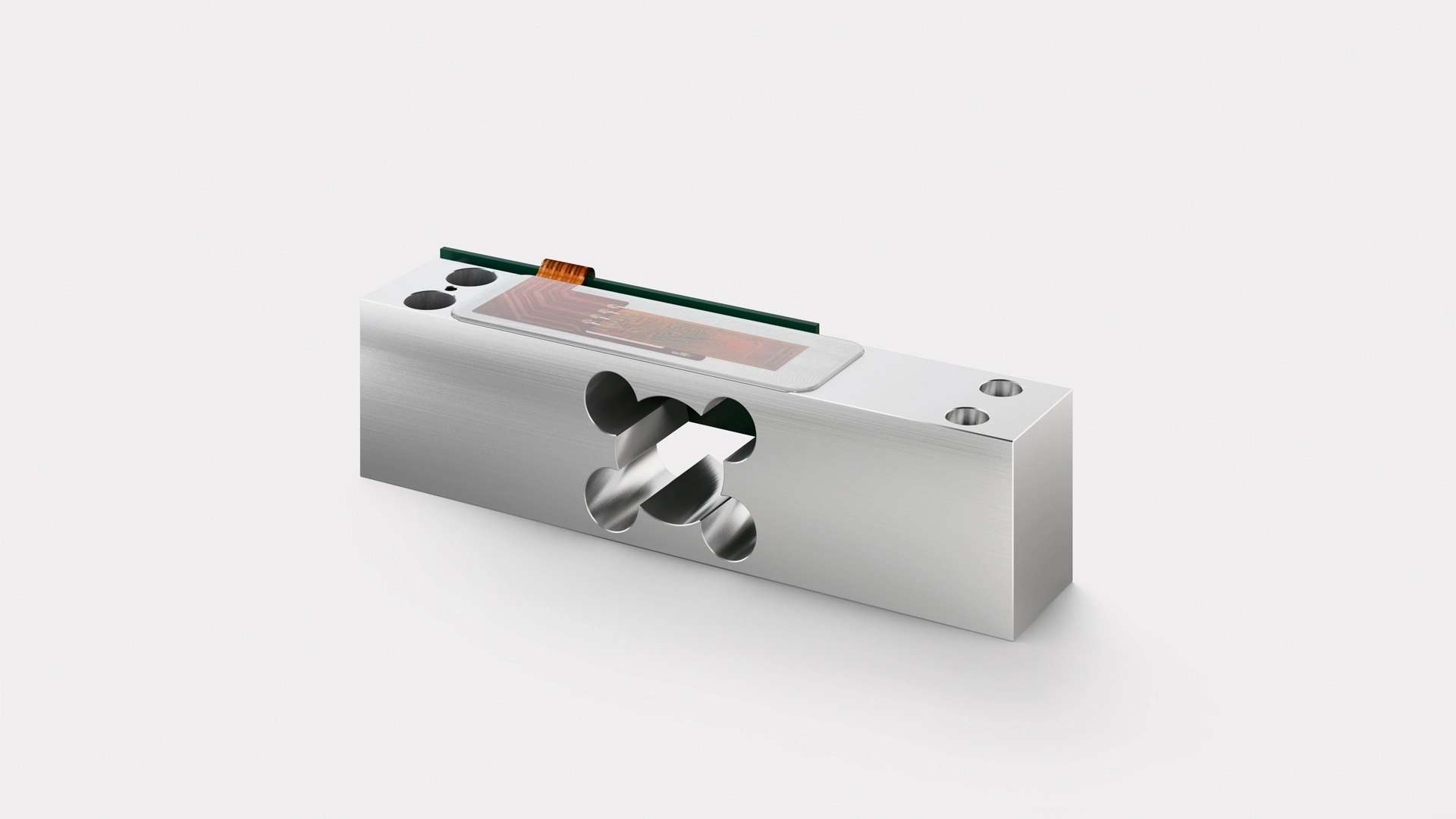

Weighing system Multi-interval strain gauge weighing system
Multi-interval strain gauge weighing system 		2x 3000d
2x 3000d
Keyboard properties Zero setting and opening of scale menu via p-display or scanner
Zero setting and opening of scale menu via p-display or scanner
Compatible devices Datalogic Magellan™ 9800i
Datalogic Magellan™ 9800i
Weight Scale including one-sided P display: approx. 2.9 kg ; Complete device with scanner: approx. 10 kg
Scale including one-sided P display: approx. 2.9 kg ; Complete device with scanner: approx. 10 kg
Unit price digits Unit price digits max.
Selling price digits max. 		6
6
For Take Away

Downloads

You can find operating instructions, software updates, licenses, service requests for your personal device in the Bizerba customer portal.
Datasheet CS 300 MA 9803 EN (1 MB)
Imagebrochure Service EN (4 MB)
