Retail scale

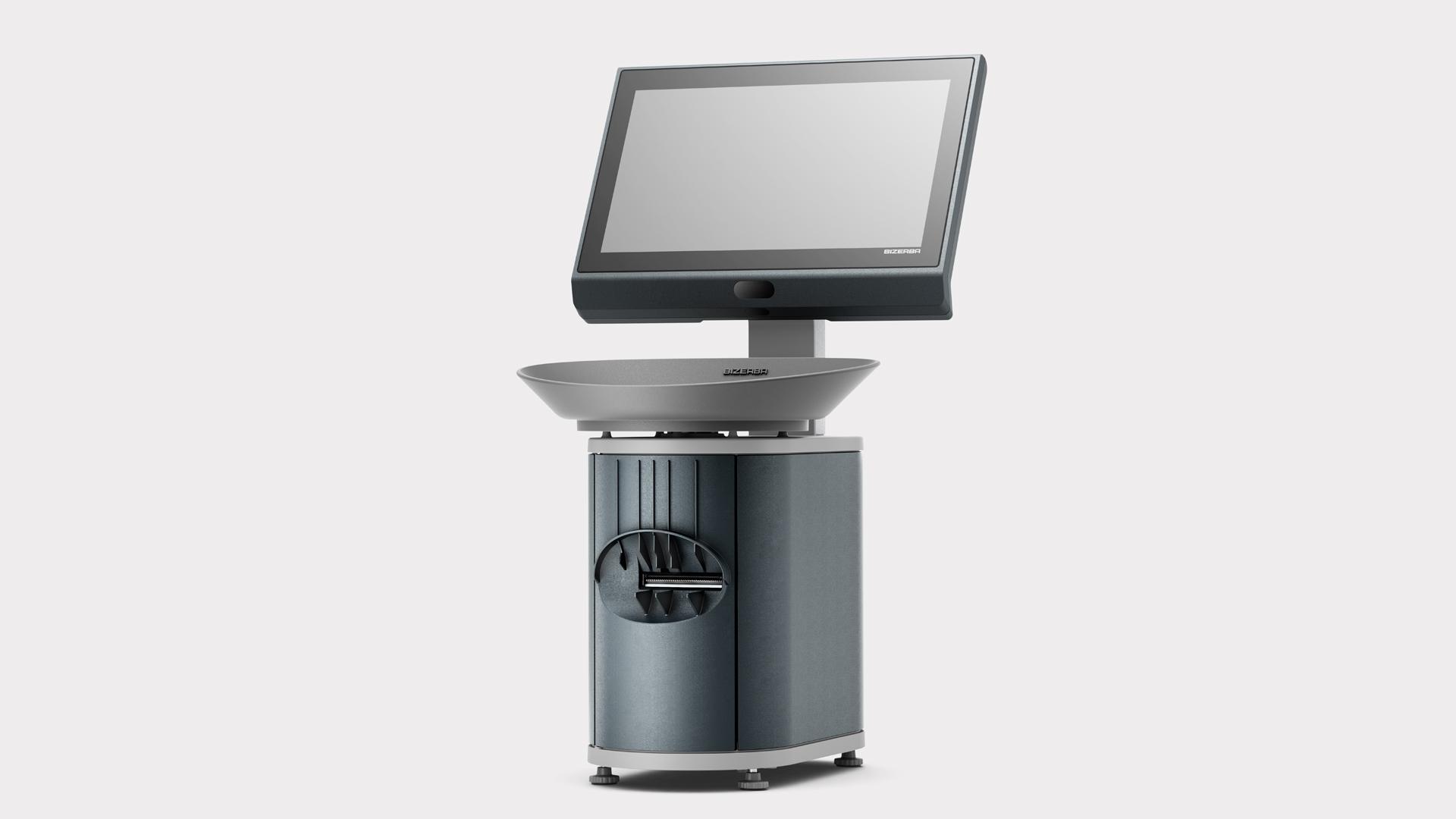

PC scale MC II 500 Pro free standing self-service scale

Modern self-service weighing. This is what the M-Class II Pro stands for

The MC 500 Pro meets the need for a modern freestanding self-service Scale. Its stand opens up opportunities for new store concepts – without requiring any additional table or base. Its sleek, attractive design ensures that customers will have no hesitation with using the free standing self-service Scale. The optimally ergonomic weighing tray is designed in the shape of a fruit bowl. Loose items cannot fall out during weighing.

The 15.6" colour touch screen display offers shoppers clarity plus optimum comfort and convenience of use: in terms of intuitive product selection, clear information about the food products and the display can advertise and show promotional videos in brilliant image quality.

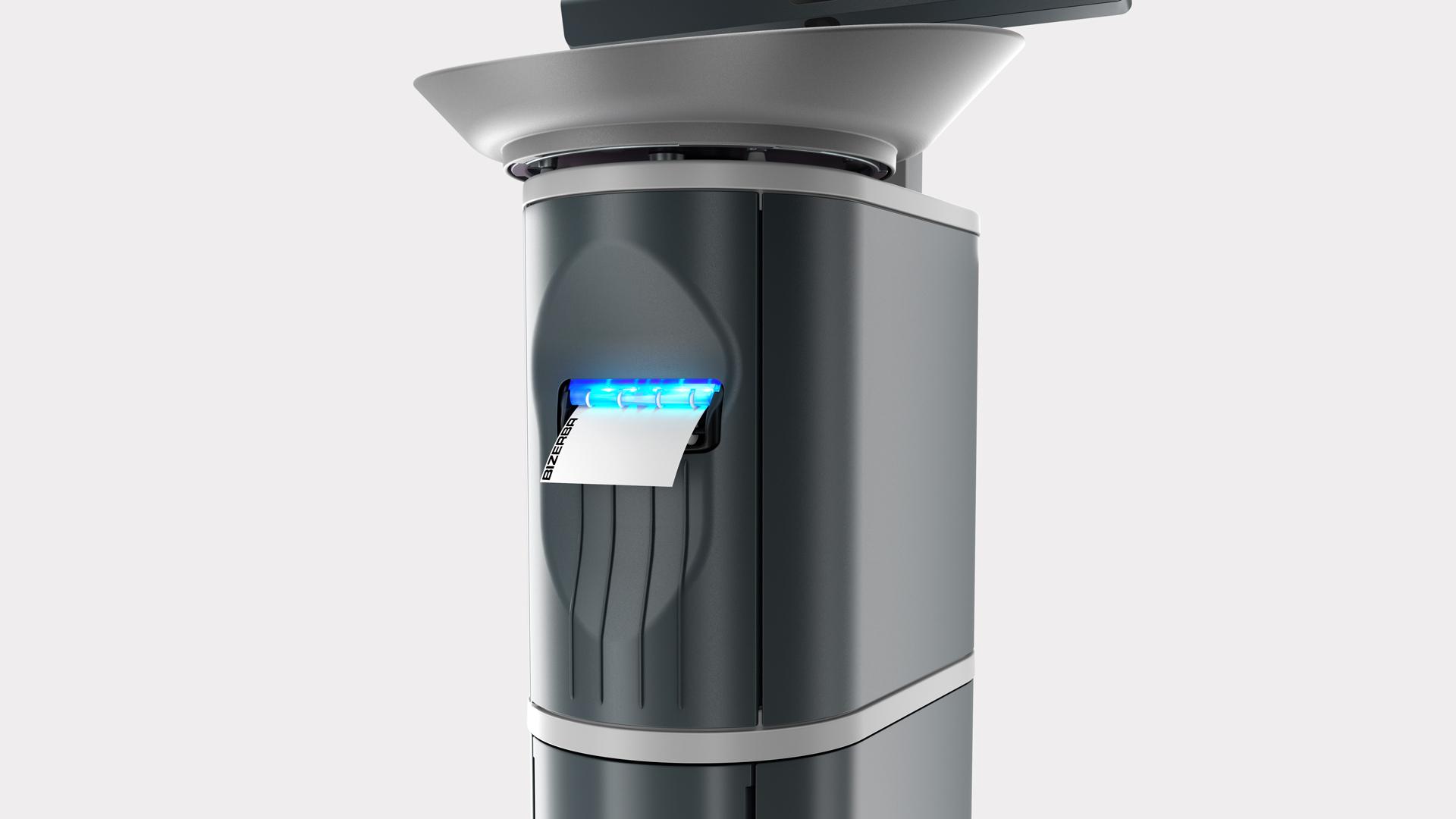

To keep the MC 500 freestanding self-service scale continuously available for service, the optional PaperNearEnd function issues a timely alert when the paper in the printer is running out. The storage space integrated in the stand offers fast and simple replacement of the label rolls. The rolls, along with cleaning agents, can be comfortably stored in the space provided and are accessible from both sides. Time can also be saved during the daily cleaning activities thanks to the Easy Clean housing.

Built with the end user in mind, this is one of the most modern and up to date designs on the market today. The innovative design means this unit can be placed anywhere in the store where ever you have power. Recently these free standing self-service Scales have become very popular along with the X-Class 800 Self-service scale. More recently, due to the low power consumption, intuitive displays and ease of use these units are the preferred choice as zero waste food shop scales.

For more information on the Bizerba Retail Scale, range or other products and services then why not contact us today. We offer free site surveys, on-site demonstrations and no obligation quotes.

Highlights

  • High-end PC scale with a powerful Intel® Quad Core processor: More performance for optimized graphics while consuming minimum energy
  • Large RAM: Ideally suitable for new features and requirements
  • Current Windows and Linux operating system: 64 bit
  • Weighing tray/pan:

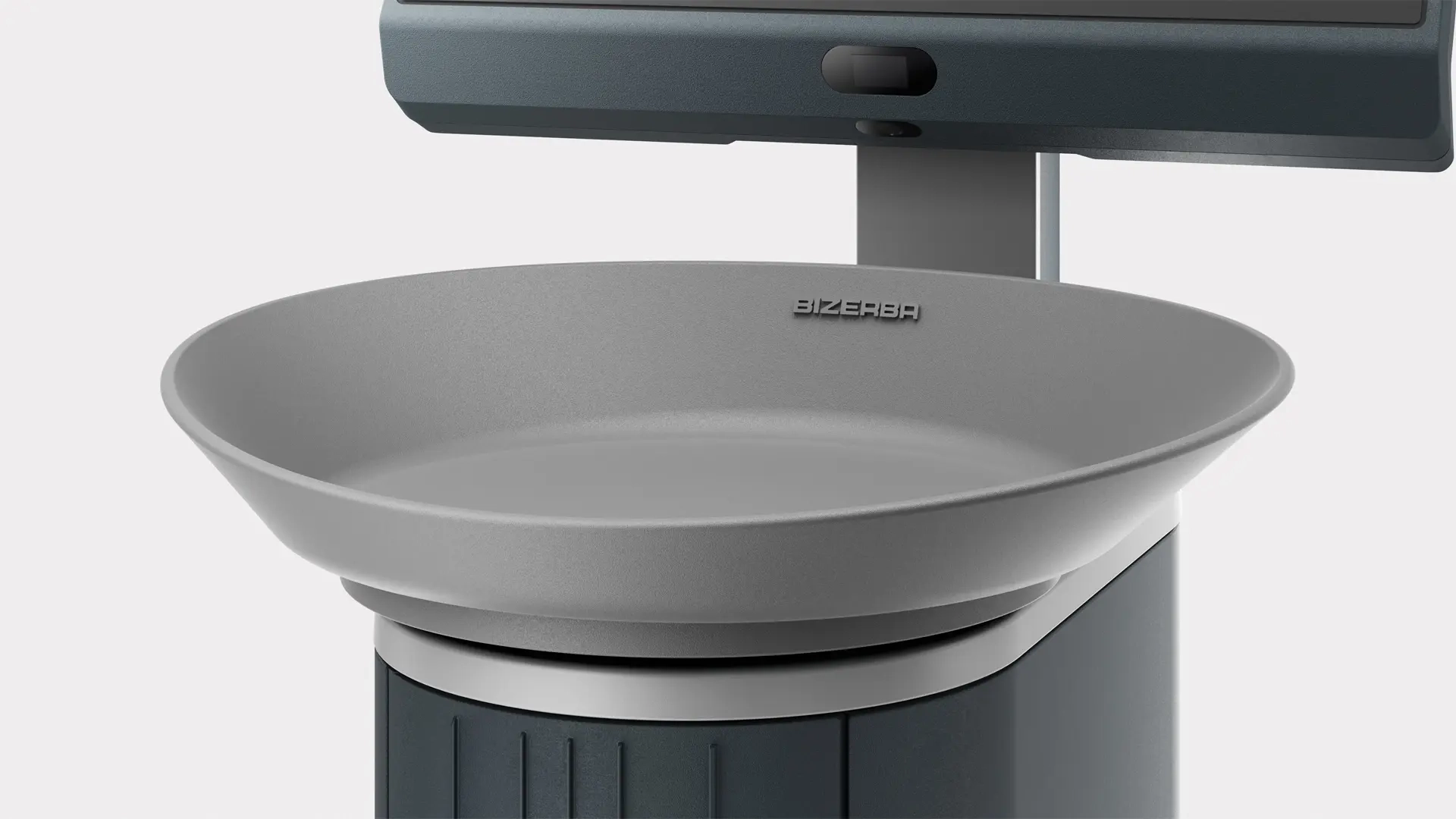

    • Shape of fruit bowl: Optimized for produce sold loose or elongated vegetables
    • Easy handling: Removable via bayonet fitting, break-proof, dishwasher-safe, easy removal of stray label

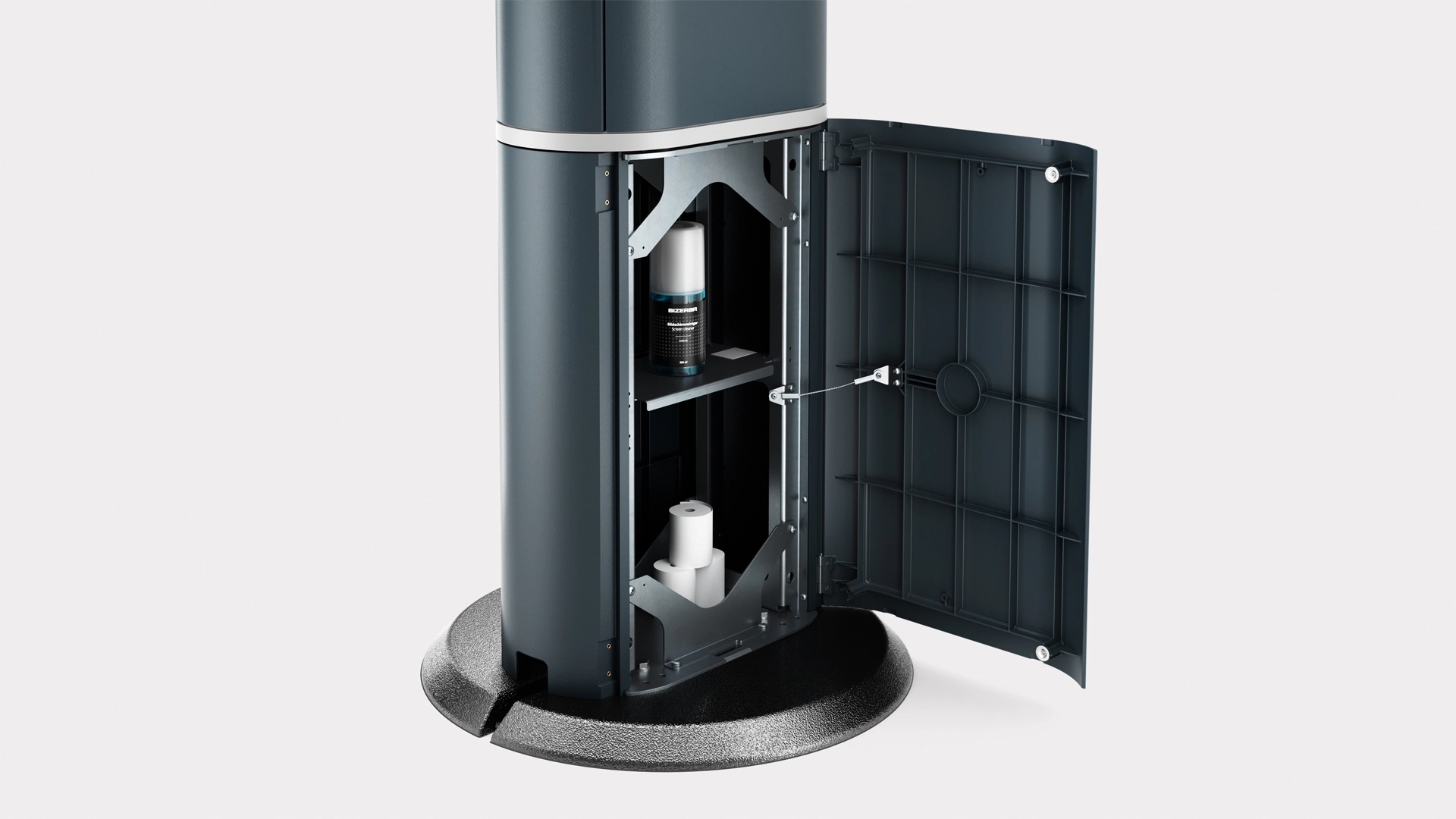

  • Storage space for replacement label rolls or cleaning materials accessible from both sides
  • High-end Bizerba software package
    • RetailPowerScale scale software
    • RetailApps for additional functionality
    • RetailFramework
    • RetailIntegratorsKit (RIK) for 3rd-party software

Product images and technical information may differ and may not be available in your country.

Areas of Use

  • Self-service

Details & Options

  • Design
    • Large, brilliant 15.6" colour touch display for intuitive operation
    • Slim stand-alone design for a flexible location selection
  • Easy concept
    • Easy Clean for quick and easy cleaning
    • Easy Load enables label rolls to be changed in a matter of seconds
  • Minimal energy consumption
    • Energy-saving SSD memory
    • Design without a fan
    • Wake on Lan function

Stand

  • Stand for flexible positioning without additional table or base

Base plate

  • For flexible positioning not secured to floor

Cast stand

  • For flexible positioning not secured to floor

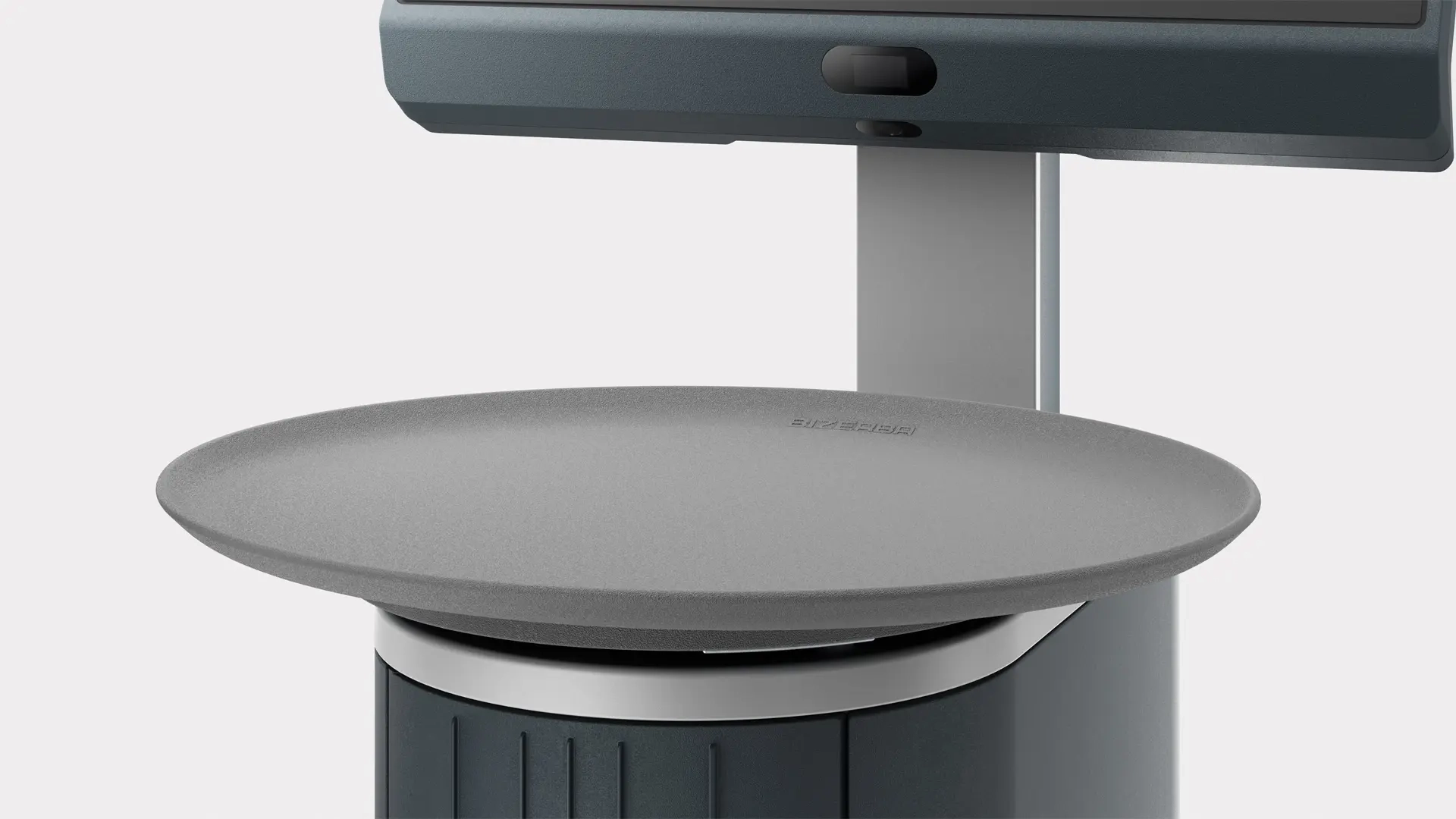

Weighing trays and pans

  • Various trays and pans in different shapes and colors (transparent or silver-gray)

Mass memory

  • 60 GB, optionally 120 GB

Interfaces

  • WLAN

Miscellaneous

  • Easy Level tilt compensation: correct weight even at an angled position, no loss of sales
  • PaperNearEnd function: Avoids label rolls running out in self-service operation

Specification Facts Details
Size/type Operator Display 12,1" TFT-display with PCAP touch (capacitive)
12,1" TFT-display with PCAP touch (capacitive)
Interfaces LAN (RJ45, GBit LAN)
1 x RJ12
WLAN
2 x COM (RS232)
2 x USB 2.0 (Highspeed)
2 x USB 3.0 (Superspeed)
LAN (RJ45, GBit LAN)
1 x RJ12
WLAN
2 x COM (RS232)
2 x USB 2.0 (Highspeed)
2 x USB 3.0 (Superspeed)
Memory DDR3 4 GB RAM
Mass storage SSD 60 GB, optionally 120 GB
DDR3 4 GB RAM
Mass storage SSD 60 GB, optionally 120 GB
Temperature range 14 °F to 104 °F
-10 °C to +40 °C
Operation
Weighing software RIK (RetailIntegratorsKit)
RetailPowerScale
RIK (RetailIntegratorsKit)
RetailPowerScale
Installation type Table
Pedestal
Floor
Table
Pedestal
Floor
Printer 3" label printer
3" linerless printer with auto-cutter
3" label printer
3" linerless printer with auto-cutter
Dimensions (L x W x H)/(D x W x H) 370 x 370 x 1209mm
370 x 370 x 1209mm
Operating system Windows 10 IoT Enterprise LTSC 2021
BizLPOS3 OpenSuse® ≥ 42.1 Leap Kernel 4.2 (64-Bit)
Windows 10 IoT Enterprise LTSC 2021
BizLPOS3 OpenSuse® ≥ 42.1 Leap Kernel 4.2 (64-Bit)
Weight MC II 500 Pro Tischmodell Ca. 17,5 kg ; MC II 500 Pro mit Standsäule, ohne Standfuß/Bodenplatte Ca. 32 kg; MC II 500 Pro Standfuß aus Guss, bestehend aus zwei Gusshälften 17 kg je Gusshälfte (2 x 17 kg) ; MC II 500 Pro ovale Bodenplatte 18,5 kg
MC II 500 Pro Tischmodell Ca. 17,5 kg ; MC II 500 Pro mit Standsäule, ohne Standfuß/Bodenplatte Ca. 32 kg; MC II 500 Pro Standfuß aus Guss, bestehend aus zwei Gusshälften 17 kg je Gusshälfte (2 x 17 kg) ; MC II 500 Pro ovale Bodenplatte 18,5 kg
Supply medium Mains connection
Mains connection
Weighing range 15/30 kg
15/30 kg
d=5/10 g
d=5/10 g
Processor type Intel® Celeron® Processor N3160 Quad Core
Intel® Celeron® Processor N3160 Quad Core
Operator display resolution 1.366 x 768 (HD/WXGA)
800 x 480
1.366 x 768 (HD/WXGA)
800 x 480
Power consumption 28 W
28 W
Random access memory DDR3L
DDR3L
For Take Away

Downloads

You can find operating instructions, software updates, licenses, service requests for your personal device in the Bizerba customer portal.
