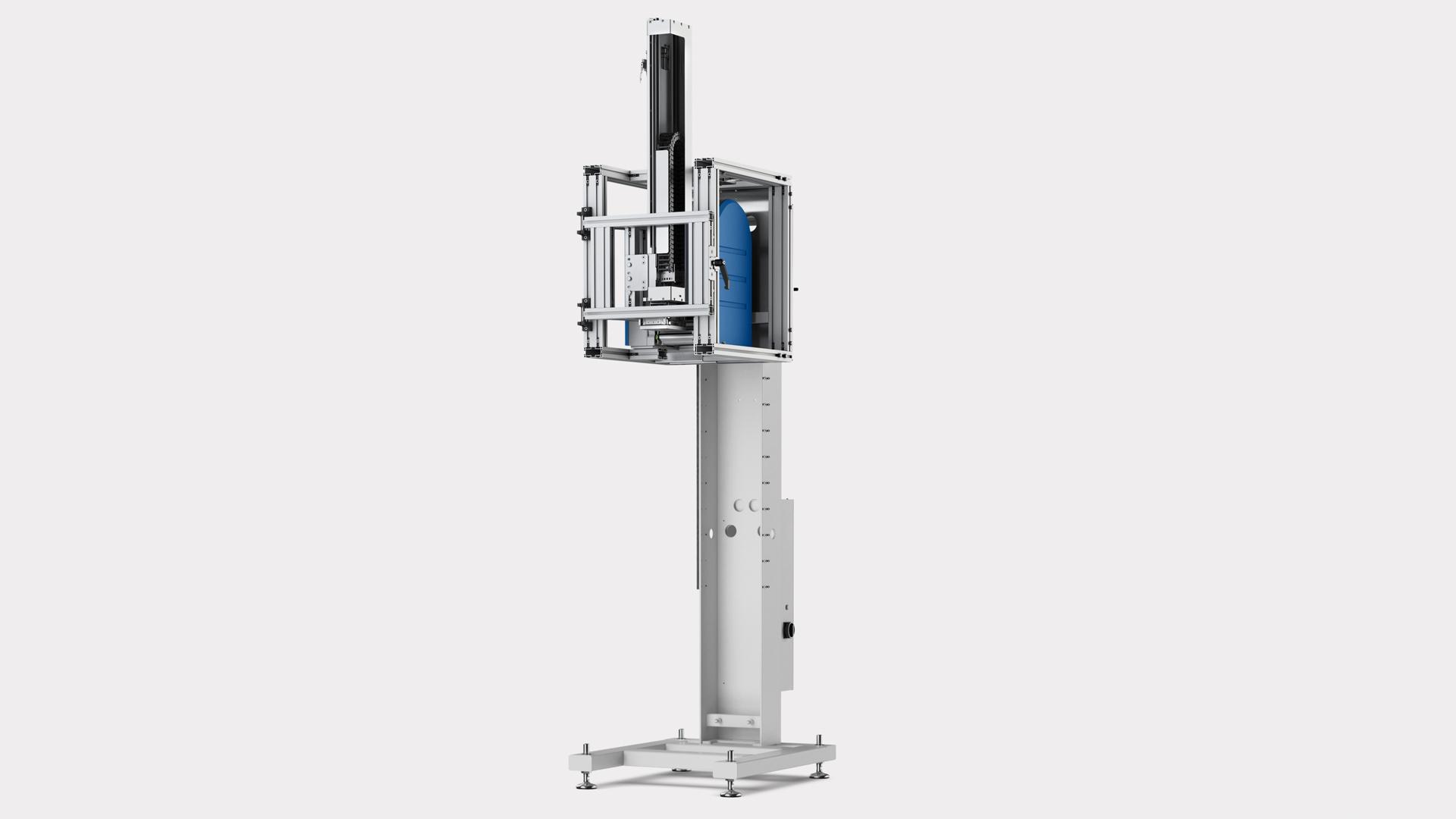

Logistics labeling systems GLM-Bmaxx 150/350/700

GLM-Bmaxx ... simply a better experience with every label ... The automatic Bizerba weigh price labeler GLM-Bmaxx makes things easy for you: It can be easily integrated into conveyor systems and data systems and thus ensures correct labeling from the case to the pallet. And with the Intel® Atom™ it fulfils both current and future requirements.
The models of the GLM-Bmaxx series can be integrated as stand-alone labelers anywhere in your conveyor systems and are controlled by EDP systems. Thanks to the Bizerba system design, they are also suitable for use as total value printers for price labeling lines and checkweigher lines. The combinable Ethernet-capable labelers are ideal for use with the dynamic Bizerba scale CWL Eco or in Bizerba DWS (dimensioning, weighing and scanning) systems. In the GLM-Bmaxx, label rolls with a diameter of up to 300 mm can be processed. Thus retrofitting time is reduced - especially with large labels.

Highlights

  • Flexible fields of application for labeling of cases, boxes and pallets in production, warehousing and distribution logistics
  • Up to 700 mm travel distance for the application of labels from the side and from above
  • Swing arm applicator with 130 mm radius of action for labeling from above, below and the sides; in transport direction
  • Thermal direct and thermal transfer print
  • Printing and processing of any one-dimensional and two-dimensional standard barcodes, among other things data matrix and QR code
  • Easy label roll change (Ø up to 300 mm)
  • Servicing of printer unit without tools, e.g. replacing thermal printhead or pressure roller

Product images and technical information may differ and may not be available in your country.

Areas of use

  • Labeling of different formats such as particularly large or flat cartons and boxes without changing the labeling line
  • Printing of decorative labels using direct thermal printing or thermal transfer printing methods, and shipping labels
  • Label output 150 mm
  • Label sizes 150 x 210 mm

Details & Options

The printers are network compatible and can also be controlled directly via the Internet. The new pc-based hardware provides more memory space and fast label data processing. The operating terminal GT-7C with color display can be operated ergonomically and thus reduces operating errors. Optionally, an operating terminal with color touch display is available.

  • Thermal transfer device
  • Printing mechanism 80 mm, optional width 104 mm
  • 12 color touch display
Specification Facts Details
Protection class IP20
Label size min. 52 mm x 74 mm (DIN A8) to max. 150 mm x 210 mm (DIN A6)
Interfaces Ethernet (TCP/IP)
RS232
RS422
TTY
Memory 2 GB
Temperature range 32 °F to 104 °F Operation
Ambient air humidity 20-90% non-condensing
Thermal transfer ribbon Core diameter 25,4 mm
Outer diameter81 mm
Printing speed max 250 mm/s
Resolution 8 dot/mm (optionally 12 dot/mm)
Print width 80 mm
optionally 104 mm, 168 mm
Applicator Tamp-blow or piston applicator for label application to front or sides, swing arm length 150 mm
Tamp-blow or piston applicator for label application to top or sides, stroke length 350 mm
Tamp-blow or piston applicator for label application to top or sides, stroke length 700 mm
Printing technology Thermodirect (optionally thermotransfer)
Barcode variations EAN/UPC 8
EAN/UPC 13
EAN/UPC 128
Code 2/5 int. Code 39
Code 128
GS1-128
PDF417
GS1 DataBar Omni
GS1 Data Bar
Data Matrix
QR-Code
Label roll Core diameter 76 mm
Outer diameter 300 mm
For take away

Downloads

You can find operating instructions, software updates, licenses, service requests for your personal device in the Bizerba customer portal.
Factsheet Glm Bmaxx 150f 350 700 EN (176 KB)
Datasheet Glm Bmaxx 150f 350 700 EN (998 KB)
Imagebrochure Service EN (4 MB)
Get in touch
Please contact our specialists at any time

Related products

Dynamic in-motion scale CWL-L
  • In-motion scale
The dynamic in-motion scales of the CWL series are specifically designed for the requirements in the logistics industry. Even in case of high speeds or high loads the verifiable checkweighers or catchweighers provide accurate and reliable weighing results - with VCM vibration compensation, even in logistics centers where interferences such as vibration and shock can hardly be avoided. Design your individual solution with the variety of models and options.
GLM-Levo
  • Logistics labeling system
Make it easy for you: Easily integrate the fully automatic labeler GLM-Levo in your conveyor systems and data systems. Ensure correct labeling from the carton to the pallet. With a powerful processor the GLM-Levo is optimally prepared for your current and future requirements.

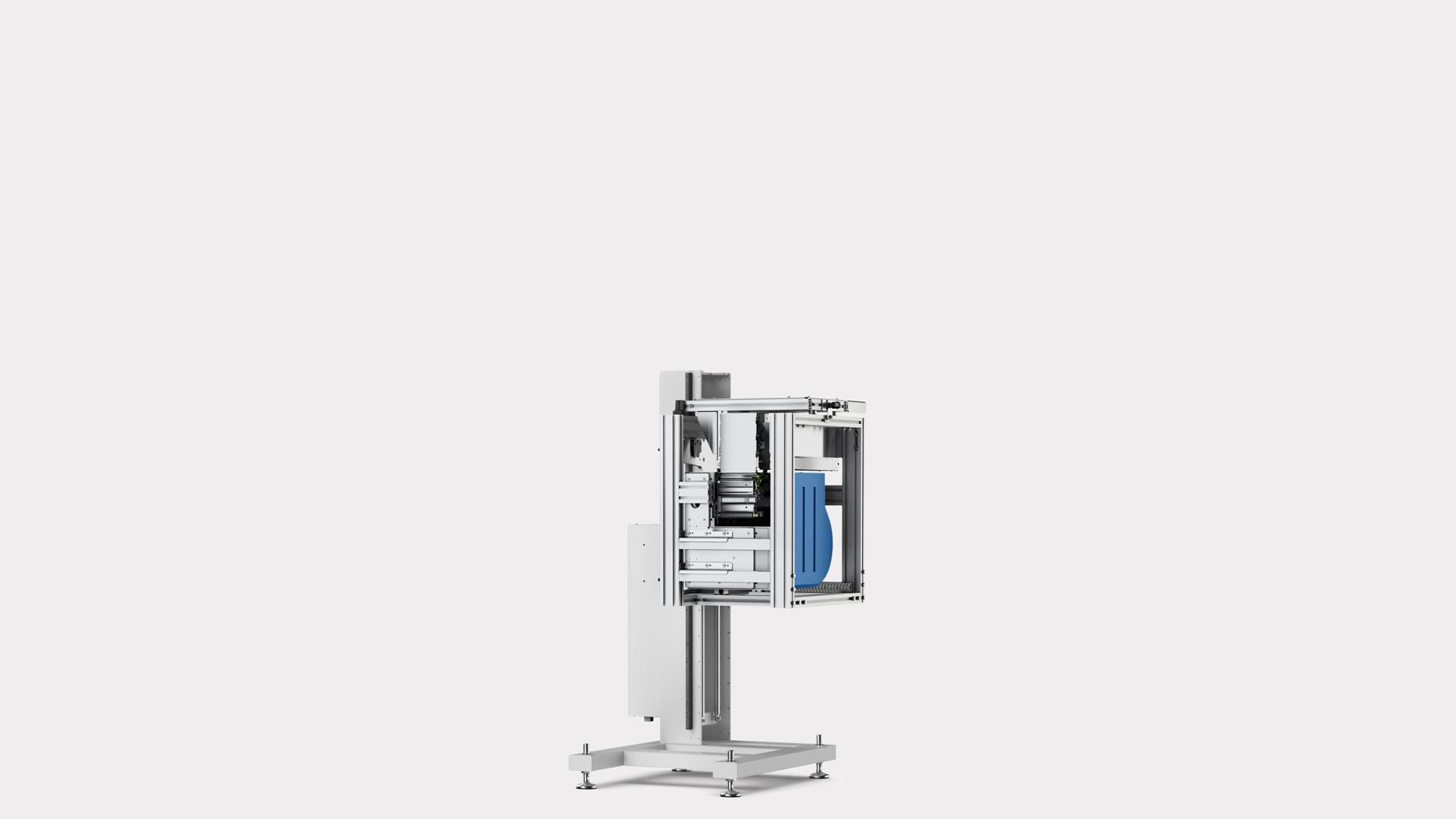

Logistics labeling system GLM-Bmaxx 120
  • Logistics labeling system
The automatic Bizerba weigh price labeler GLM-Bmaxx 120 makes things easy for you: It can be easily integrated into conveyor systems and data systems and thus ensures correct labeling from the case to the pallet.
Weighing module WM-3
Designed for integration in a control cabinet on top hat rail

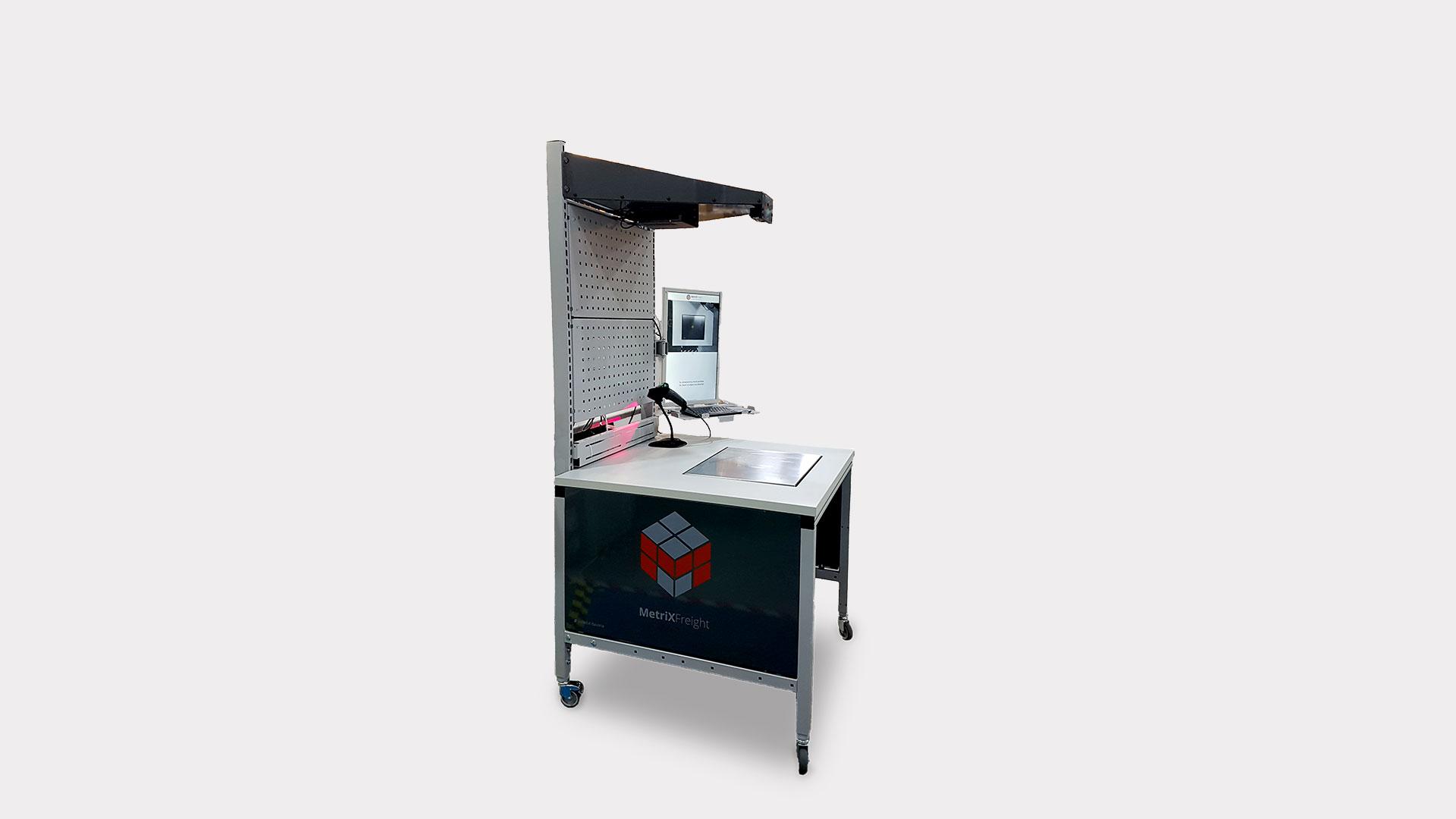

MetriXFreight S140
