Labels

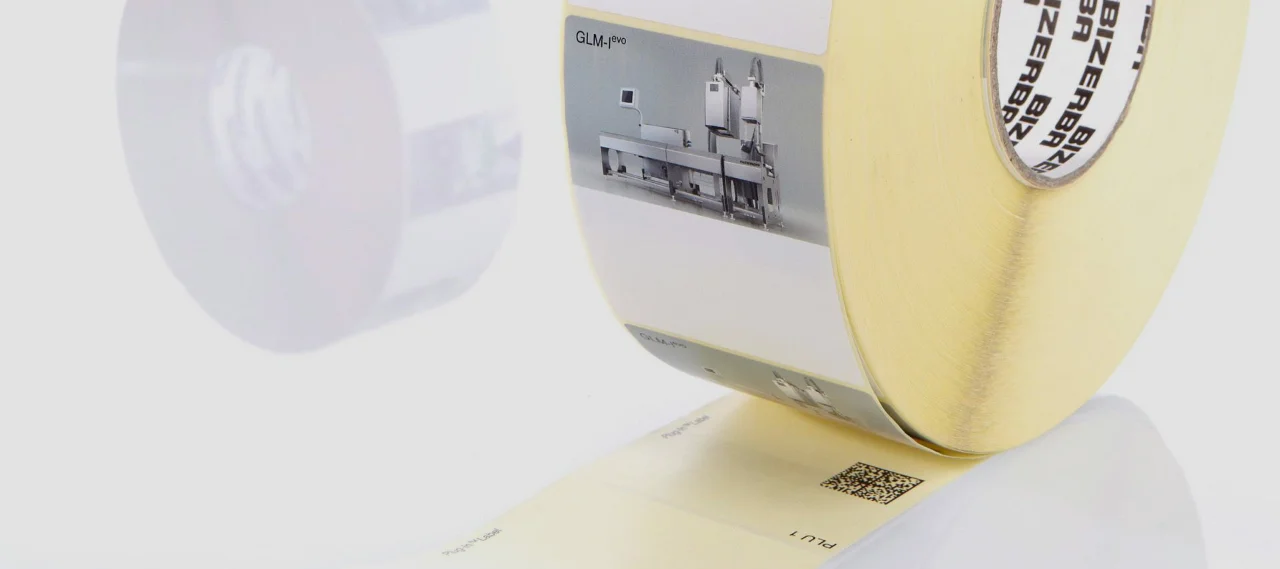

Plug-In® labels

With integrated label code on the liner for automatic control of a price labeling device based on the interaction of label and device. Plug-In® labels reduce setup times and avoid costly incorrect labeling.

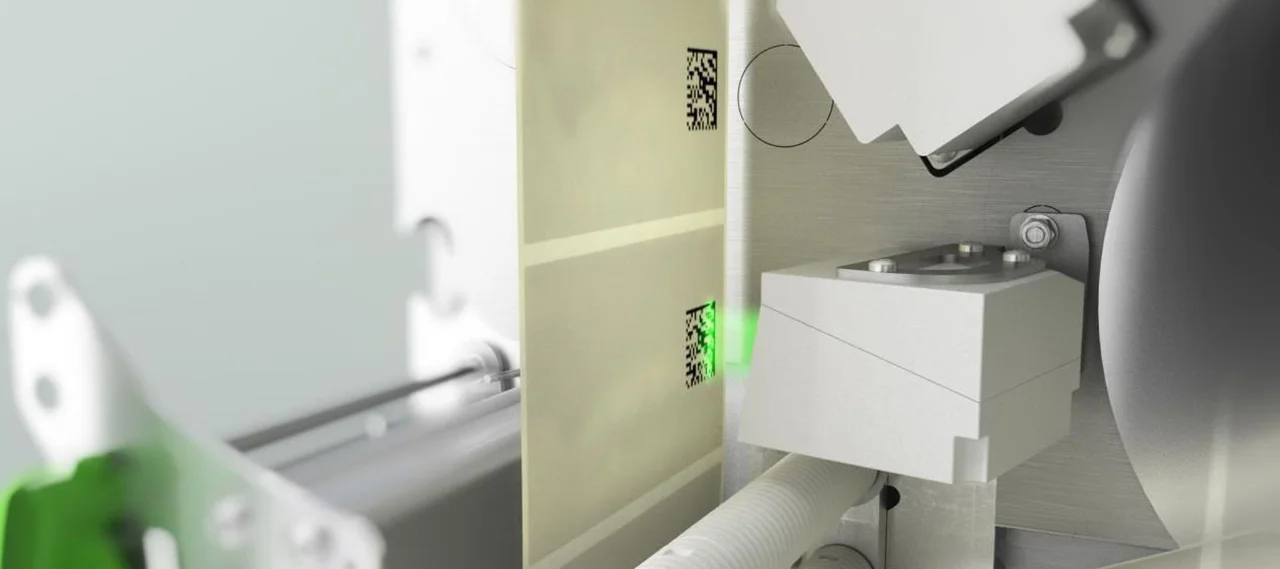

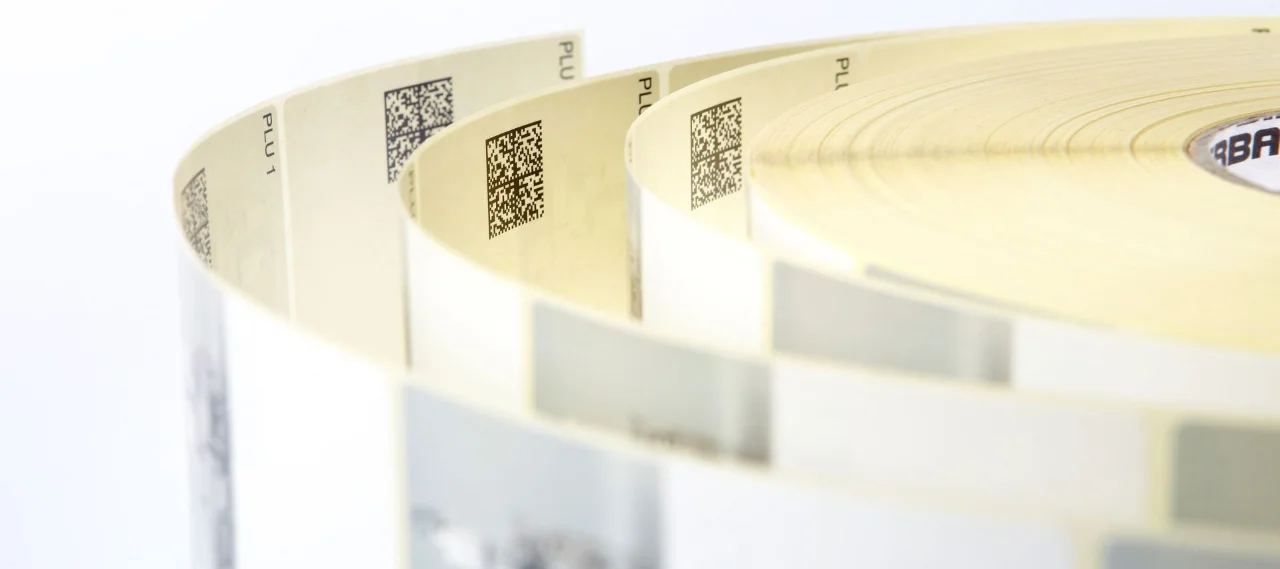

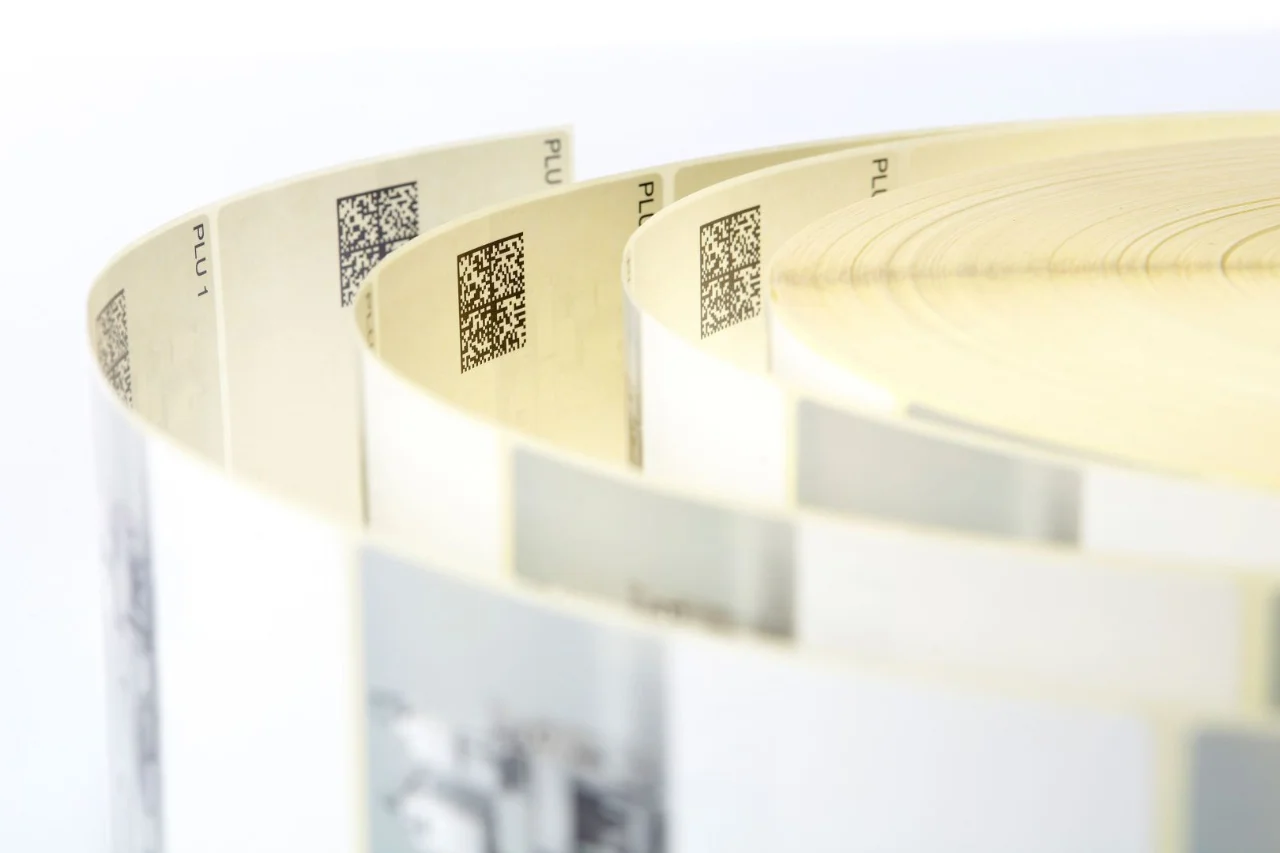

Plug-In® labels comprise a code in their liner which includes the most important label information (label specifications and SAP number) and stores device-dependent machine parameters. Via this two-dimensional barcode, the label is clearly identified and authenticity guaranteed. The device is then qualified of retrieving PLU data associated to the product and to automatically adjust individually in order for imprint areas, print speed and individual settings to be implemented without intervention of a machine operator.At the same time this allows a cross check which assigns the right PLU to the right label. The error source of incorrect labeling is thus omitted. Using original parts extends the service life and reduces the total cost of ownership. This functional label was specifically developed for weigh price labeler GLM-Ievo and the Bizerba label qualities »BRL 70« and »BRL 90«.
These products might also interest you:
Barcode labels
With this label solution you digitally stay on top of things during stock-taking and logistics. You define coding and number range and link them with your database. Thanks to the optimally coordinated Bizerba label quality your archiving, inventory or material flow tracking becomes easy and reliable.
Label for direct contact with food
Our special solution for labeling fresh, moist or greasy food: Manufactured from a material approved for food. Water and grease resistant properties and printable in thermal transfer process. Suiting your needs we realize your individual label in true Bizerba quality.
Multilayer labels
This practical solution triples the space for your product and supplementary information. You can communicate general mandatory information and have new freedom for multilingual information, marketing elements or a creative design. Matching your needs we realize your individual label in true Bizerba quality.

Highlights

  • Label information can be used for label management
  • Increase of label throughput by 20% thanks to a print speed of 300 mm/sec
  • Automated device setting and control via the customer's PLU number and the data stored in the label code
  • Label material testing (BRL 90 releases the high-speed mode which BRL 70 does not support)



Product images and technical information may differ and may not be available in your country.

Areas of use

  • In fully automatic price and product labeling in combination with a Bizerba GLM-Ievo

Details & Options

The Plug-In®label system offers numerous new possibilities. This allows customers, for example, to have labels supplied "just-in-time" in order to lower their stock-keeping costs.

Quality features

Currently, a print speed of 300 millimeters per second at a throughput of 200 packages per minute is possible. The labeler ensures that the maximum speed is only applied if thermal labels are used which are suitable for this speed. For each batch there is a security check to ensure optimal print results for barcodes and reference texts, perfect readability resulting in fewer rejected products by the retailer.

TypePropertiesAdhesiveWeight
BRL 70Superior Top quality: with sophisticated thermal sensitivity; additional special surface protection on upper and lower surface;
Application area: for print speeds of up to 200 mm/sec.		BK 002 C; BK 002 B: BK 003 C; BK 003 B; BK 304;
BK 2088		75 g/qm
BRL 90Premium Top quality with sophisticated thermal sensitivity; additional special surface protection on upper and lower surface;
Application area: for print speeds of up to 300 mm/sec.		BK 002 C; BK 002 B: BK 003 C; BK 003 B; BK 304;
BK 004
BK 2088		75 g/qm
show more +
For take away

Downloads

You can find operating instructions, software updates, licenses, service requests for your personal device in the Bizerba customer portal.
Brochure Bizerba Label Solutions(8 MB)
