Industrial scales

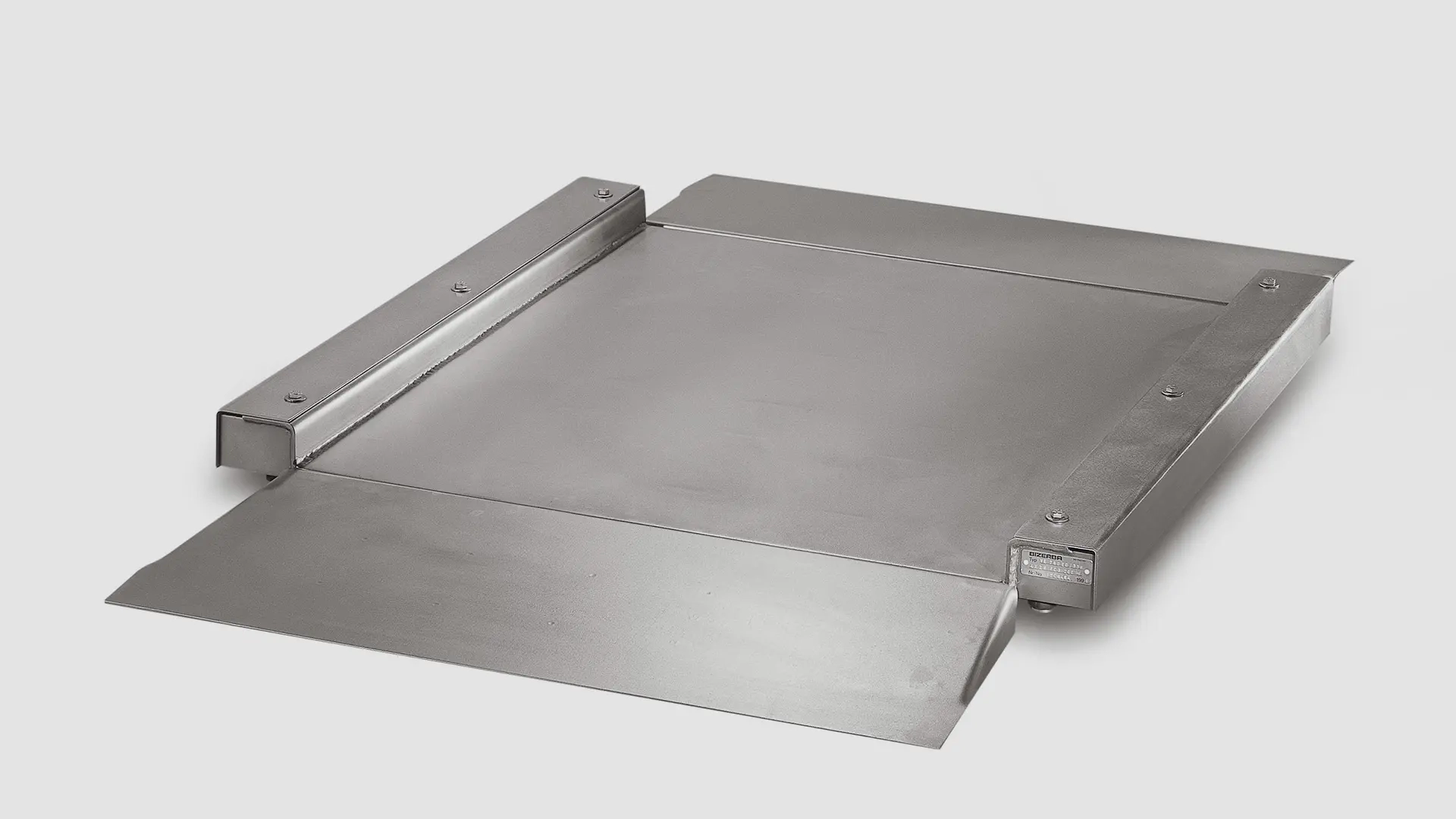

Load receptor iL Special 4000D/MP

Floor scale with drive-on/off ramps in extra flat design
The simple and extremely flat design of the load receptor guarantees low maintenance and wear-resistant operation with a high level of long-term precision. Load receptor iL Special 4000D/MP can be optionally used: built-in or freestanding, with or w/o drive-on ramps, s/s lacquered, hot-dip galvanized or made of s/s. Therefore perfectly suitable for many applications.
These products might also interest you:
Wall mounted scale with folding table iL Special 150T/SP
Electromechanical load receptor without lever work entirely made of s/s for wall mounting
Floor scale iL Special 2000FF/MP
Lift-up floor scale with practical lifting frame - for easy hygienic cleaning.

Highlights

  • Overall height of weighing platform only 43 mm
  • low-maintenance and wear-resistant operation
  • high long-term accuracy
  • 4 strain gauge load cells, hermetically sealed and corrosion-resistant
  • good shock- and vibration absorption and self-centering

Product images and technical information may differ and may not be available in your country.

Areas of use

  • Multi point load receptor designed as dual interval scale for goods receiving, warehousing and shipping; depending on the version suitable for load capacities of up to 3000 kg.
  • in combination with Bizerba weighing terminals it can be used for counting, dosing, formulation, checking and commissioning
  • suitable for use in potentially explosive zones 1/21 and 2/22

More info, please

How can we help?

We will be happy to inform & advise you on your options with this solution or service. Please give us some information so that we can support you in the best possible way. We will get back to you as soon as possible.
Contact consultant

Details & options

Specification Facts Details
Load cell HLCB
Verificationable ☑
Protection class IP67
Maximum load 6614lbs
Temperature range 14 °F to 104 °F Operation
Installation type freestanding
Floor
Dimensions (L x W x H)/(D x W x H) 1250 x 1500 x 43+5 mm
Weight 215 kg
Supply medium Supply by weighing terminal
Accuracy class III
Weighing range 1200 kg
1200 kg
1500/3000 kg
600/1500 kg
1500/3000 kg
300/600 kg
300/600 kg
3000 kg
600 kg
3000 kg
600 kg
600 kg
3000 kg
600 kg
300 kg
3000 kg
1500 kg
600 kg
3000 kg
600 kg
1500 kg
3000 kg
300 kg
1500 kg
300 kg 		d=0,2 kg
e=0,2 kg
d=0,5/1 kg
d=0,2/0,5 kg
e=0,5/1 kg
d=0,1/0,2 kg
e=0,1/0,2 kg
d=0,1 kg
d=0,02 kg
d=0,2 kg
d=0,05 kg
d=0,1 kg
d=0,5 kg
d=0,2 kg
d=0,01 kg
d=1 kg
d=0,05 kg
e=0,1 kg
e=0,5 kg
e=0,2 kg
d=0,1 kg
e=1 kg
d=0,1 kg
e=0,5 kg
e=0,1 kg
Material painted steel
Stainless steel V2A
Ramps ☑
Approval information R61 = AGFI, Automatic grafimetric filling instrument
R76 = NAWI, Non automatic weighing instrument
Wheel load 882 lbs
1653 lbs
Axle load 1764 lbs
3307 lbs
Explosion safety ATEX Zone 1/21
ATEX Zone 2/22
For take away

Downloads

You can find operating instructions, software updates, licenses, service requests for your personal device in the Bizerba customer portal.
Imagebrochure Service EN (4 MB)
Datasheet IL Special 4000d MP EN (428 KB)
Factsheet IL Special 4000d MP EN (551 KB)
