Line converger LCE

Optimizes package handling in material flow systems

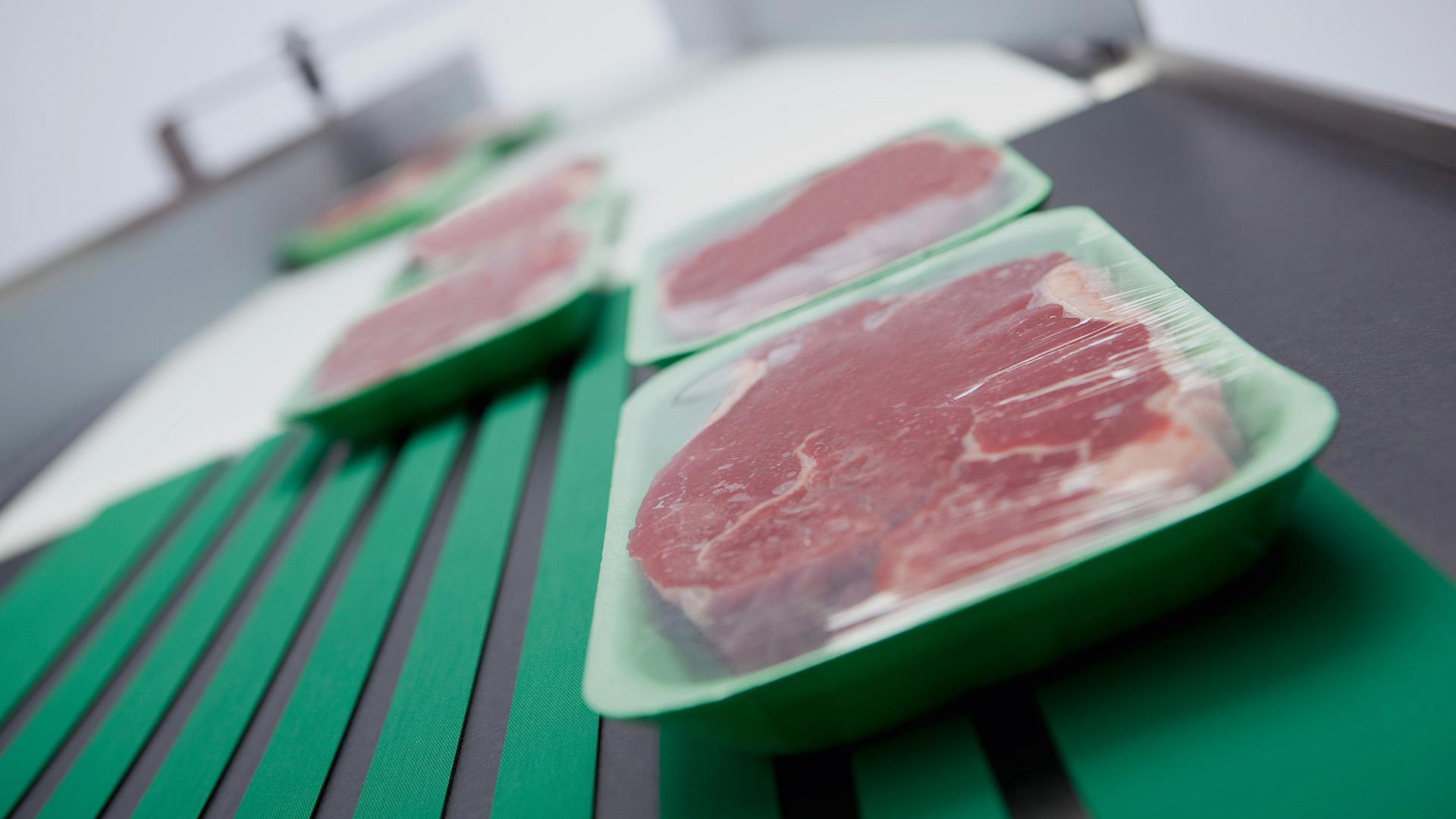

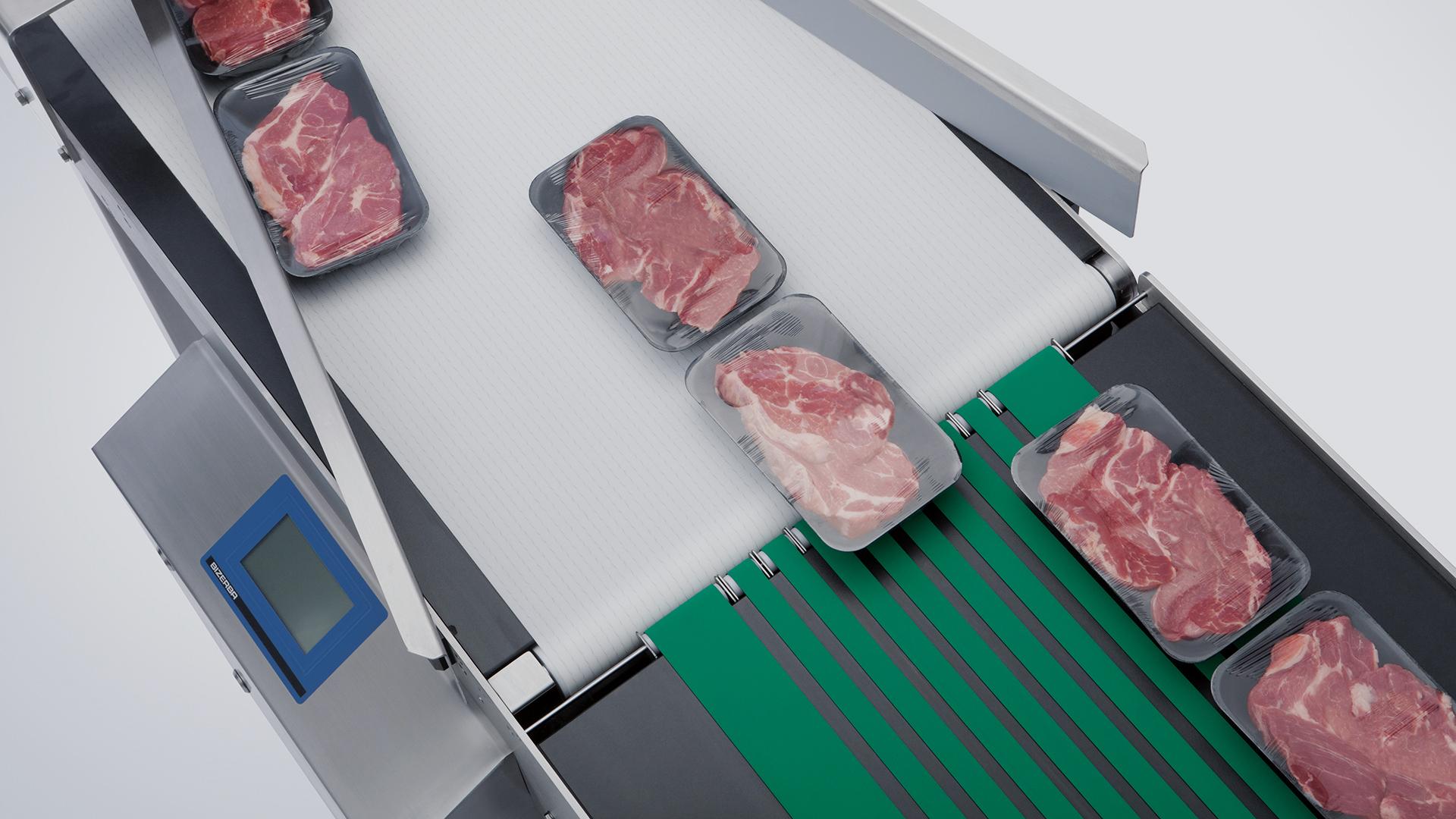

By channeling up to 6 product lanes into a single line the LCE allows controlled product feeding from the packaging machine to the price labeler. Due to specially formed and Teflon-coated alignment rails the converger belt proves its effectiveness especially for flat packages. It can be infinitely adjusted from 10 - 80 m/minute and individually set for each PLU.
These products might also interest you:

Highlights

  • Quick belt change
  • Intuitive and easy to work with touch display
  • Easy-to-clean housing
  • High-quality materials

Product images and technical information may differ and may not be available in your country.

Areas of use

  • Package handling in material flow systems, incl. weighing and price labeling

Details & Options

The required number of lanes along the 650 mm, patented starter belt is freely selectable, and the individual lanes can be switched in any sequence and at independent start intervals – each at speeds between 6 - 60 m/minute.

The transfer speed for a batch of packs and the output speed per packaging lane are continuously variable. With a defined time delay, the Bizerba LCE is even able to safely transport batches of packs that are longer than the actual converger belt to their intended destination.

  • Rotary station for turning packages by 90°
  • Connection of a buffer belt and mobile version of the Bizerba LCE
Specification Facts Details
Voltage variants 230 V 50-60 Hz
Supply medium Compressed air 6 bar
Mains connection 100 - 240 V, 50/60 Hz
Mains connection 230 V, 50/60 Hz
power supply 230 V, 50/60 Hz
Display properties Touch display, monochrome
Max. conveyor belt speed Starter belt 6-60 m/min (two speed rates can be set respectively for acceptance and transportation)
Alignment belt 10-80 m/min
Material stainless steel
Belt dimensions (L x W) 1900 x 65-560 mm (version length 1900 mm)
1580 x 65-560 mm (version length 1900 mm)
1900 x 65-425 mm (version length 1900 mm)
1580 x 65-425 mm (version length 1900 mm)
Dimensions (L x W x H)/(D x W x H) L x B: 1900 x 790 mm
L x B: 1580 x 790 mm
Product Dimensions Range (L x W x H) 80 - 650 x 65 x 140 mm
80 - 650 x 425 x 140 mm
80 - 650 x 560 x 140 mm
Weight 16.5 lbs
Dimensions range (L x W x H)/(D x W x H) 750 - 925 x 790 x 1580 mm
