Dynamic control scale

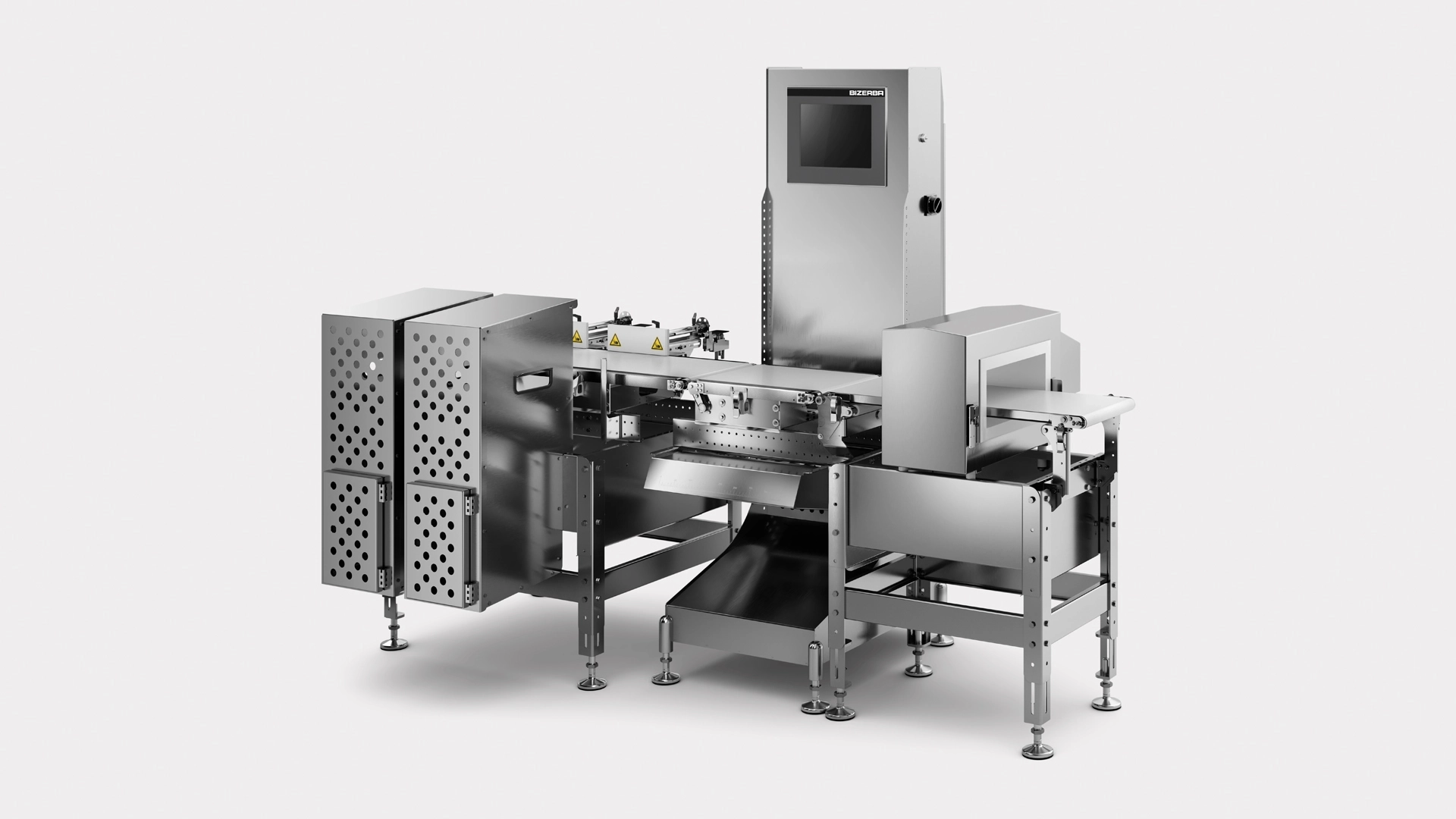

Standard Dynamic Checkweigher CWEmaxx

Standard Dynamic Checkweigher for quality assurance at the highest level

This standard dynamic checkweigher is available in a large number of combinations including combi checkers with a metal detector. Or to be used with an end of line vision inspection system LabelSecure

The CWEmaxx series dynamic checkweigher normally used in the food industry mainly in middle and high-performance settings. In the non-food area they are used in lines with high output and for weighing ranges of up to 15 kilograms.

Alternatively if you are looking for more hygienic dynamic checkweighers then you may want to consider the CWPmaxx. A checkweigher that is perfectly suited to food processing where cleanliness and hygiene needs to be of the very highest standard.

Furthermore if you are looking for a smaller unit, then you may want to look at the new CWD checkweighers. As a result this will weigh and check up to 250 items per minute.

Also consider the other model in this range is the CWFMaxx. This system setup individually made to specified requirements. A high end high speed checkweigher.

Perfectly suited to be used with an in line inspection machine. X-Ray Inspection or Metal detector. This system set up and fitted with alternative conveyor belts and an optional large 12 inch colour touch screen. Offering you 100% control over your production line.

Show More +
These Products Might Also Interest You:
Vision inspection system LabelSecure
Efficient control of packagings and labels applied to them
Industrial software BRAIN2
The BRAIN2 software platform sets new standards in terms of centralization, data exchange and production reliability.
X-ray inspection system XRE-D pro
Discover the new XRE-D pro! The intelligent X-ray system for the inspection of packaged products sets standards in terms of detection accuracy and application flexibility.

Highlights

  • Protection type IP65
  • Statistic data evaluation with _statistics.BRAIN

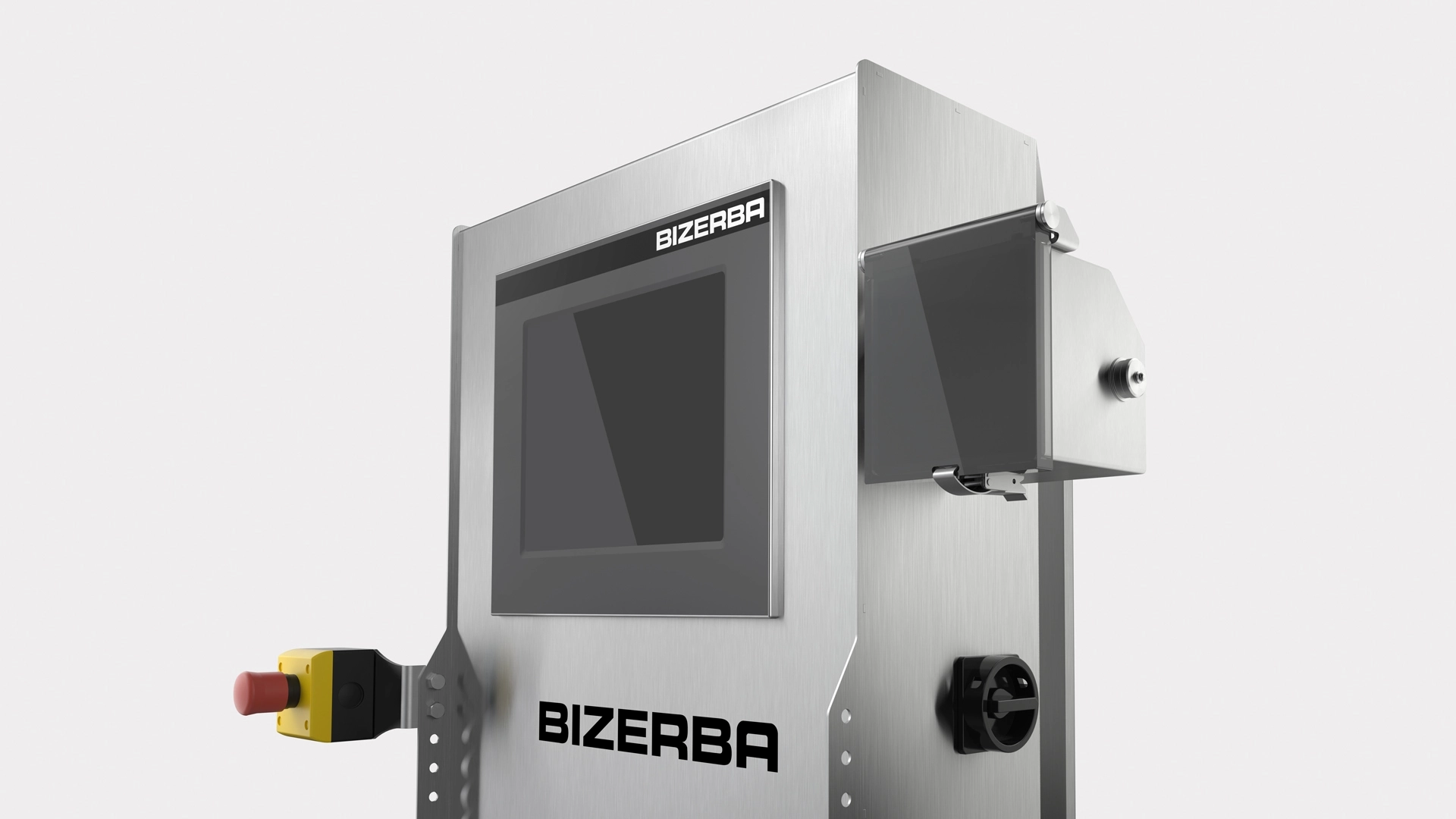

  • 12" color touch screen
  • Quick and easy cleaning via the specially developed belt body and quick belt change system
  • Integration of a metal detector possible
  • Individual adjustment to customer needs in terms of band width / length possible

Product images and technical information may differ and may not be available in your country.

Areas of Use

  • Suitable for self-service packages (IP65)
  • Depending on weight and size up to 400 products per minute can be weighed
  • Suitable for fill quantity control
  • Weighing ranges from 10 to 15,000 g

Details & Options

Thanks to their modular design, Bizerba's CWEmaxx systems can adjust to fit any production lines. Transport height and direction of movement can thus be easily changed on-site.

In addition, separating systems, lights, signal tones, and trend control for controlling upstream systems are optimized for every product model.

There are numerous IT interfaces and a software connection using Bizerba's BRAIN2 network for planning and investment security beyond the initial installation.

  • Available versions CWEmaxx 1500/3000/6000/15000
  • Integration of metal detectors
  • 7" color display with membrane keyboard

SpecificationFactsDetails
Voltage variants 100 - 240 V 50 - 60 Hz, AC, 500 - 700 VA
Size/type Operator Display 15.6" TFT display with PCAP touch (capacitive)
12" Colour touch screen
Interfaces USB
I/O Signals
RS232
RS422
Ethernet
TTY
Temperature range 0 °C to +40 °C
-10 °C to +40 °C 		Operation
Operation
Installation type Floor
Ambient air humidity 20-90% non-condensing
Reject systems catcher
Lift/drop flap system
pusher
without rejection system
Air-jet nozzle
Flap reject
Divider
Double air-jet nozzle
Supply medium Mains connection 100 - 240 V, 50/60 Hz
compressed air 6 bar
Accuracy class XIII
I
Material Stainless steel 1.4301
Processing performance 170 m/min
Approval information DE-17-MI006-PTB036, 4.Revision
Dust: II 2D Ex tb [ib] IIIC T80°C Db IP65
Show More +
For Take Away

Downloads

You can find operating instructions, software updates, licenses, service requests for your personal device in the Bizerba customer portal.
Datasheet Cwemaxx EN(1 MB)
Factsheet Cwemaxx 1500 EN(275 KB)
Factsheet Cwemaxx 3000 EN(273 KB)
Factsheet Cwemaxx 6000 EN(303 KB)
Factsheet Cwemaxx 15000 EN(285 KB)
Imagebrochure Service EN(4 MB)
Brochure Checkweigher EN(4 MB)
Factsheet Cwemaxx 600 EN(762 KB)
